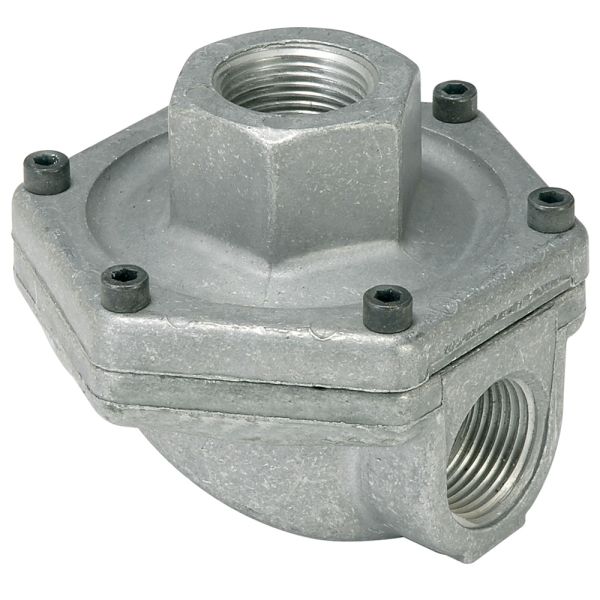

Parker 0R Quick Exhaust Valves provide rapid exhaust of control air allowing for increased cylinder speed to be accomplished while improving efficiency. When a cylinder can quickly exhaust pressure, cylinder stroke speed will be reduced. The 0R quick exhaust valve has a greater exhaust capacity than the many four-way directional control valves, so increased cylinder speed can be accomplished with a smaller and less expensive control valve. Diaphragm materials are available in Urethane, Nitrile, Fluorocarbon, and PTFE to meet a wide variety of temperature and pressure operating conditions. 0R Quick Exhaust Valves can also be used as shuttle valves, which determine a single pneumatic output from two separate inputs. If pressure is applied to both ports simultaneously, the valve will select the port with the higher pressure.
Markets:
• Factory Automation
• Heavy Industries
Features/Benefits:
• Cast aluminum housing
• Nitrile and Flourocarbon diaphram
• Allows for increased cylinder speeds
Applications:
• Rapidly cycling of actuators
• General industrial
| Media | Air |
|---|---|
| Division | Pneumatic Division |
| Product Type | Rapid Exhaust, Shuttle Valve |
| Body Material | Die Cast Aluminum |
| Seal Material | Fluorocarbon, PTFE, Urethane, Nitrile Butadiene Rubber (NBR) |
| Flow Rate | 150 to 550 SCFM |
| Mounting Type | Inline |
| Operating Temperature | -18 to 260 °C, 0 to 500 °F |
| Port Size | 1/4 inch, 3/8 inch, 3/4 inch, 1/2 inch, 1/8 inch |
| Port Type | NPT, BSPP, BSPP “G” |
| Port Connection | Female to Female |
| Operating Pressure | 0 to 13.8 bar, 3 to 200 psig |
| Flow Coefficient | 2.7 to 10.0 Cv |
| Lubricant | None |
| Port 2 Size (inch) | 3/4 |
| Materials : Diaphragm | Standard - Urethane (Nitrile static seals) |
| Operating Temperature (F) | 0 - 180 |
| Port 3 Size (inch) | 3/4 |
| Port 1 Size (inch) | 3/4 |
