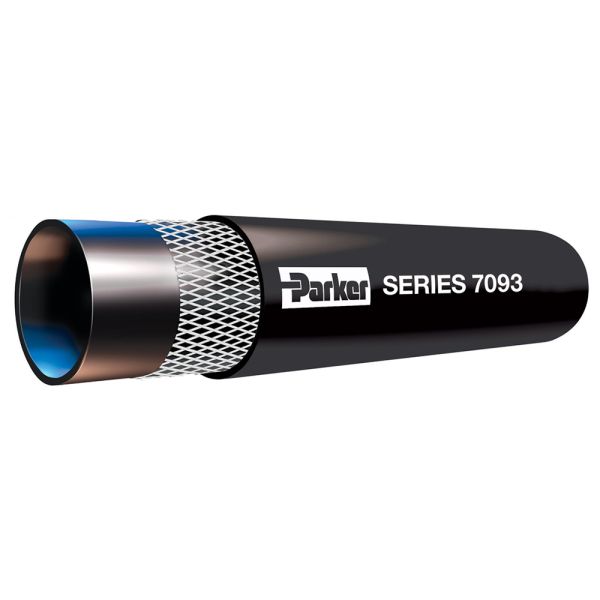

GST® II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi
Parker's GST II General Purpose Industrial Air & Water Hose provides excellent service across multiple applications. The hose tube is compatible with light oil mists for tool lubrication. The hose cover is available in multiple colors for easy identification, and also resists abrasion and weathering. GST II hose is available in long continuous lengths for efficient inventory management and maximum utility at cramped or hard to reach job sites. The hose is qualified with permanent crimp couplings for a safe and secure connection and is a versatile hose for many common industrial applications.
Markets: • Agriculture • Construction • General Industrial
Features/Benefits: • Tube: Black EPDM for versatile and economical service to 212°F. • Reinforcement: Multiple textile plies for strength and kink resistance. • Cover: Black, blue, green, red or yellow EPDM for abrasion and weathering resistance. • Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.
Applications: - media • Air • Mild chemicals • Water - usage • Air compressor/air tool hose, including systems that employ light oil mists for lubrication • Shop air hose • Water hose for clean-up/wash down, cooling and spray
Safety/Technical: • Design Factor: 4:1 • Do not use with oil or refined fuel.
Warnings: • Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines • Under no circumstance is the GST II family of hoses or any other EPDM hose to be used in a welding hose and or welding gas delivery application unless the Parker catalog, literature, and a product marking explicitly states that the product is approved for welding hose fuel gas applications.
Air, Water, Mild Chemicals - Check your fluid compatibility with our catalogue chart.
Maximum Operating Pressure
200 psi, 13.8 bar
Division
Hose Products Division
Compatible Fitting
HY Series
Application
Air, Multipurpose
Hose Inner Tube Material
Black, Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance), ARPM Class C Oil Resistance, Black (ARPM Class C Oil Resistance), Ethylene Propylene Diene Monomer (EPDM)
Inside Diameter
19.1 mm, 3/4 inch
Maximum Operating Temperature
212 °F, 100 °C
Minimum Operating Temperature
-40 °F, -40 °C
Minimum Bend Radius
6 inch, 152.4 mm
Outside Diameter
28.2 mm, 1.110 inch
Specifications Met
ARPM Class C Tube
Cover Material
Ethylene Propylene Diene Monomer (EPDM)
Hose Reinforcement Material
2 Plies of Textile, 4 Plies of Textile
Weight Parker
0.15 kg/m, 0.32 lb/ft
Tube Material
Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
