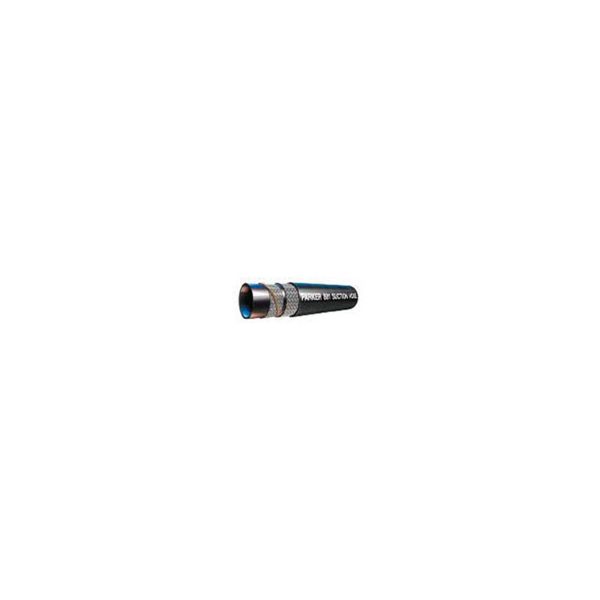

HI-TEMP SCTN HOSE

HOSE

Be the first to review this product

Parker's 881 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Availability: In stock

SKU

881-12

Available Qty

Lead Time

Details

Parker's 881 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications. The 881 hose is designed, built, and tested to meet SAE 100R4 performance specifications. Sizes range from ¾” to 2-½” in diameter to fit the requirements of various markets.

More Information

More Information
Media	Petroleum Hydraulic Fluids, Lubricants
Maximum Operating Pressure	300 psi, 2.1 MPa
Division	Hose Products Division
Compatible Fitting	43 Series, 81 Series, 88 Series
Application	Petroleum Base Hydraulic Fluids, Lubricating Oils
Hose Inner Tube Material	Synthetic Rubber
Inside Diameter	3/4 inch, 19 mm
Maximum Operating Temperature	257 °F, 125 °C
Minimum Operating Temperature	-40 °F, -40 °C
Vacuum Pressure Rating	28 inch-Hg, 95 kPa
Minimum Bend Radius	5 inch, 127 mm
Outside Diameter	30.6 mm, 1.2 inch
Specifications Met	SAE J1943, USCG HF, SAE 100R4
Cover Material	Synthetic Rubber, MSHA Approved
Design Factor	4:1
Hose Reinforcement Material	Multiple Braids of Fiber with Wire Helix
Weight Parker	0.5 lb/ft, 0.74 kg/m
Nominal Hose Inside Diameter	19 mm
Hose I.D. (size)	-12
