HOSE

Details

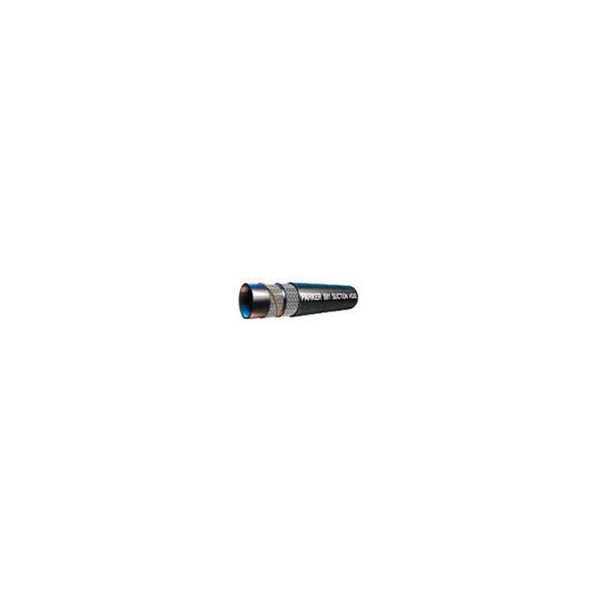

Parker's 881 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications. The 881 hose is designed, built, and tested to meet SAE 100R4 performance specifications. Sizes range from ¾” to 2-½” in diameter to fit the requirements of various markets.

Markets:

• Transportation

• RV & Bus

• Military

• Construction

• Agriculture

• Grounds & Building Maintenance

• Forestry

• Railroad

• Utility Equipment

• Personnel Lift Equipment

• Machine Tool

• Oil Field Service

• Waste & Refuse

• Material Handling

• Marine

• Paving & Road Maintenance

• Ground Support Equipment

• Industrial

• Mining

Features/Benefits:

• 62-300 PSI working pressure in different sizes

• SAE J517 100R4 / SAE J1942 Performance Specifications

• Oil and weather-resistant synthetic rubber cover, MSHA accepted

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 43 series fittings

• 81 series fittings

• 88 series fittings

More Information

More Information
Media	Petroleum Hydraulic Fluids, Lubricants
Maximum Operating Pressure	150 psi, 1 MPa
Division	Hose Products Division
Compatible Fitting	43 Series, 81 Series, 88 Series
Application	Petroleum Base Hydraulic Fluids, Lubricating Oils
Hose Inner Tube Material	Synthetic Rubber
Inside Diameter	1-1/2 inch, 38.1 mm
Maximum Operating Temperature	257 °F, 125 °C
Minimum Operating Temperature	-40 °F, -40 °C
Vacuum Pressure Rating	28 inch-Hg, 95 kPa
Minimum Bend Radius	10 inch, 254 mm
Outside Diameter	2.060 inch, 52.4 mm
Specifications Met	SAE J1943, USCG HF, SAE 100R4
Cover Material	Synthetic Rubber, MSHA Approved
Design Factor	4:1
Hose Reinforcement Material	Multiple Braids of Fiber with Wire Helix
Weight Parker	1.65 kg/m, 1.11 lb/ft
Nominal Hose Inside Diameter	38 mm
Hose I.D. (size)	-24
