| Maximum Operating Pressure | 1500 psi (Dependent on hose), 10.3 MPa, 103.0 bar |
|---|---|
| Division | Parflex Division |
| Application | Chemical Transfer, Fluid Control, Instrumentation, Food Processing, Laboratory, Public Works, Sampling |

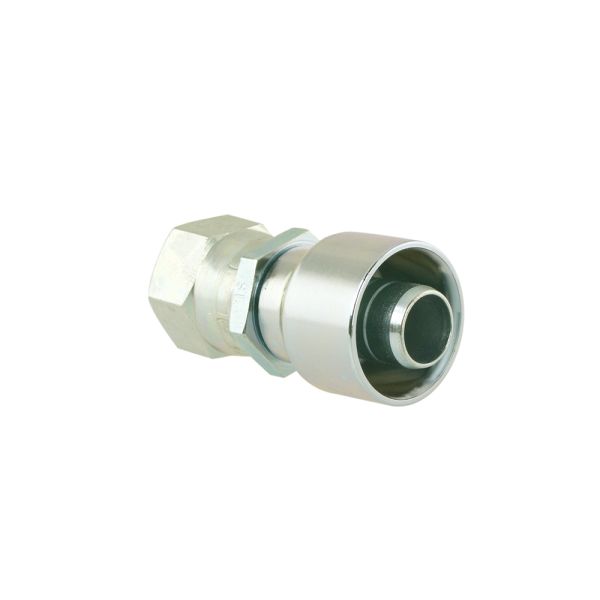

| Product Style | Female JIC 37° - Swivel |
| Specifications Met | n/a |
| Product Type | Hose Fittings |
| Body Material | Steel |
| Shape | Straight |
| Length (inch) | 2.79" |
| Connection 2 Size | 1-1/16"-12 inch Thread, 1-1/16"-12 |
| Connection 1 Size | -12 (Size), 3/4 inch Hose I.D., 19 mm |
| Brand | Parker |
| Connection 2 Type | Female, Swivel, JIC 37° |
| For Fluid Type | Steam, Gases, Hydraulic Fluids, Chemicals, Water, Air (Pneumatic Media) |
| Hose I.D. (inch) | 0.75" |
| Hex Size | 1-1/8 inch (see drawing legend H) |
| Industry | Industrial Manufacturing Equipment, Transportation, Food & Beverage, Semiconductor, Healthcare & Life Sciences, Industrial Processing, Chemicals Processing |
| Connection 1 Type | Hose |
| Product Series | 93N |
| Configuration | Hose to Port |
| Technology | Fluid & Gas Handling |
| Connection Length | 1-11/16 inch Cut-off allowance (see drawing legend B), 43 mm |
| Fitting Length | 70.8 mm, 2.79 inch (see drawing legend A) |
| Coating | Chromium 6 Free-plated |
| Hex Size 1 | 1-1/4 inch (see drawing legend J) |
