| Maximum Operating Pressure | 20.7 MPa, 207 bar, 3000 psi (Dependent on hose) |
|---|---|
| Division | Parflex Division |
| Application | Chemical Transfer, Hydraulics, Tools & Equipment, General Industrial, Medical, Pneumatics, Ultra High Purity, Fluid Control, Instrumentation, Semiconductor |

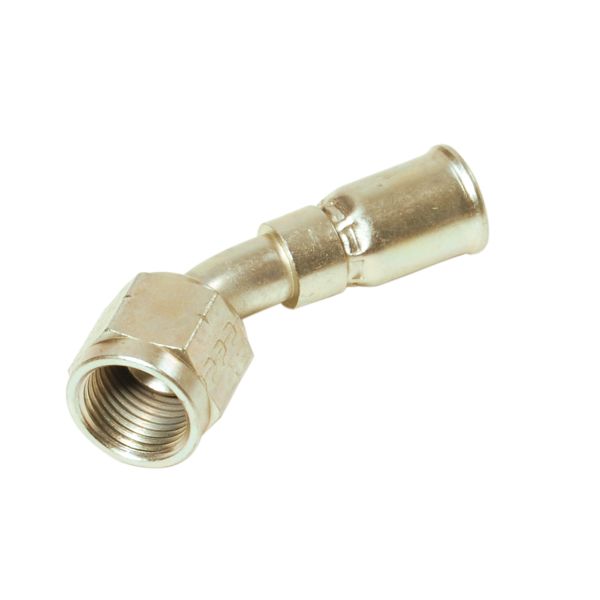

| Product Style | Female SAE 45 / Swivel - 45° Elbow |
| Specifications Met | n/a |
| Product Type | Hose Fittings |
| Body Material | Steel |
| Shape | Elbow 45° |
| Tube Outside Diameter | n/a |
| Dimensional Weight | 0.0637 lb |
| Length (inch) | 2.06" |
| Connection 2 Size | 5/8"-18 inch Thread, 5/8"-18 |
| Connection 1 Size | 7.9 mm, 5/16 inch Hose I.D., -6 (Size) |
| Brand | Parker |
| Connection 2 Type | Female, 45° Flare SAE Swivel |
| For Fluid Type | Steam, Gases, Hydraulic Fluids, Chemicals, Water, Pharmaceutical Fluids, Air (Pneumatic Media), Oil |
| Hose I.D. (inch) | 5/16" |
| Hex Size | n/a |
| Industry | Transportation, General Industrial, Food & Beverage, Semiconductor, Healthcare & Life Sciences |
| Connection 1 Type | Hose |
| Product Series | 91N |
| Configuration | Hose to Port |
| Technology | Fluid & Gas Handling |
| Connection Length | 1-5/16 inch Cut-off allowance (see drawing legend B), 33 mm |
| Fitting Length | 52 mm, 2.06 inch (see drawing legend A) |
| Coating | Chromium 6 Free-plated |
| Hex Size 1 | 3/4 inch (see drawing legend H) |
