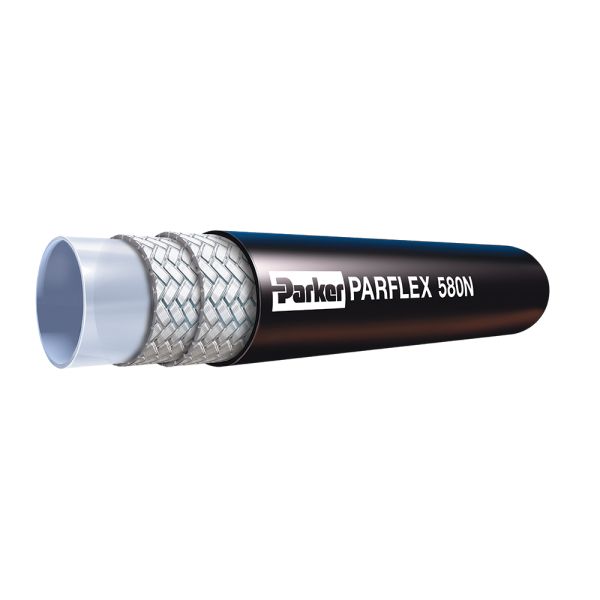

The 580N/588N High Pressure Flexible Hose meets SAE 100R8 specifications and offers a smaller O.D. and lighter weight than the 100R2, replacing 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required.
Parker’s 580N/588N High Pressure Hose meets SAE 100R8 specifications and, with a lighter weight and smaller O.D. than the 100R2, replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required. This high pressure hydraulic hose features a highly developed design, available in twin-line and multi-line constructions, to ensure high performance in hydraulic and pneumatic circuits and systems applications. Offering superior features, such as a reduced weight and improved flexing capabilities, the Parflex 580N/588N High Pressure Hose combines a variety of advantages to fulfill application requirements in expanding fluid handling and industrial pneumatic markets.
Markets: • Fluid Handling • Industrial • Mobile Equipment
Features/Benefits: • Twin and multi-line available to fulfill diverse application requirements • Lighter weight and smaller O.D. than 100R2 for improved handling and routing • Replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required
Applications: • Hydraulic and pneumatic circuits and systems • Construction Equipment • Factory Automation • Machine Tools • Material Handling Equipment • Turf Equipment
Certifications/Compliance: • Meets/Exceeds SAE J517 100R8 • DNV-GL Type Approved • 580N MSHA complaint cover • 588N Meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications: • Hose 588N has a non-conductive core tube for applications where electric shock is a potential danger for operators • Hose I.D. is nominal • Hose O.D. is maximum
