HVY WALL HEATER 5/8

HVY WALL HEATER 5/8"X 50' BLUE

HVY WALL HEATER 3/4

HVY WALL HEATER 3/4"X 50' BLUE

HVY WALL HEATER 5/8"X 100'BLUE

Silicone Heavy Wall High Temperature Heater Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 83 psi, Series 6723
Availability: In stock
SKU
6723-0625100
Lead Time
6

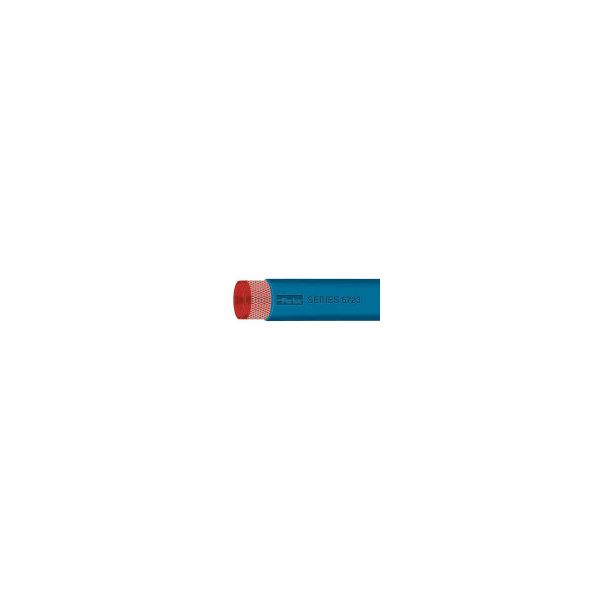

Parker's Series 6723 Silicone Heavy Wall High Temperature Heater Hose provides excellent service across a wide variety of coolants and multiple engine heater and radiator applications. The silicone construction resists chemicals, aging, cold leaks, cracking, delamination, heat, ozone and peeling to maximize performance. The thick hose wall provides robust service, is flexible for easy routing and installation and resists the elevated temperatures common to engine compartments.

Markets:
• General Industrial
• Transportation

Features/Benefits:
• Tube: Red silicone for superior heat resistance to 350°F.
• Reinforcement: Multiple textile plies for strength and kink resistance.
• Cover: Blue silicone for superior temperature resistance and easy identification.

Applications:
- media
• Coolant
• Hot water
- usage
• Coolant transfer in heater and coolant circuits
• Agricultural equipment
• Buses
• Construction equipment
• Off-road equipment
• Trucks

Industry Standards:
• SAE J20R3 Class A

Safety/Technical:
• Design Factor: 3:1
• Nonconductive
More Information
Media Water, Coolants
Maximum Operating Pressure 6 bar, 83 psi
Division Hose Products Division
Application Engine, Silicone Coolant
Hose Inner Tube Material Silicone, Brick Red
Inside Diameter 5/8 inch, 15.9 mm
Maximum Operating Temperature 350 °F, 176 °C
Minimum Operating Temperature -65 °F, -54 °C
Minimum Bend Radius 1.5 inch, 38.1 mm
Outside Diameter 1.020 inch, 25.8 mm
Specifications Met SAE J2387, SAE J20R3
Cover Material Silicone
Hose Reinforcement Material Multiple Plies of High Temperature Textile
Weight Parker 0.12 kg, 0.27 lb
Hose I.D. (inch) 5/8"
Cover Color Blue
Minimum Burst Pressure 250 psi, 17.2 bar
Package Type Carton
Cover Structure Glossy
Standard Pack Qty (ft) 100
Minimum Burst Pressure (psi) 250
