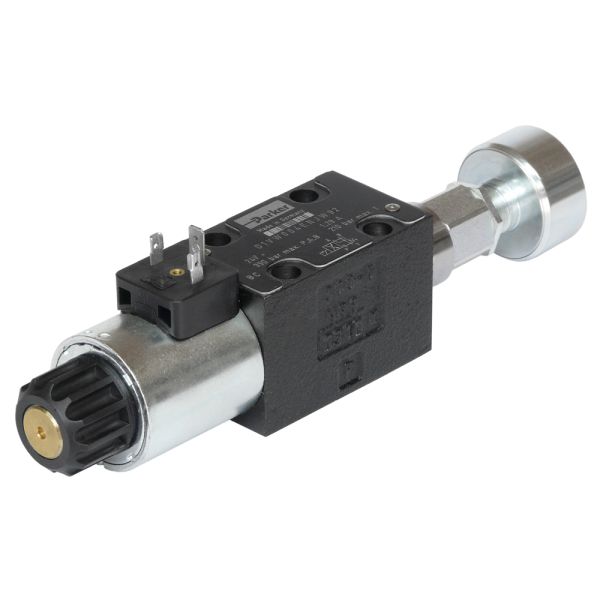

The NG06 direct operated directional control valve D1VW with inductive position control provides high functional limits up to 80 l/min in combination with a low, energy saving pressure drop. It is typically used in safety relevant applications.
Parker’s direct operated directional control valve series D1VW with inductive position control in NG06 (CETOP 03 / NFPA D03) features low energy losses due to optimized flow passages. It offers high functional limits up to 80 l/min and a maximum pressure of 350 bar.
This on/off valve is typically used in safety relevant applications. It complies with the machinery directive 2006/42/EG for use as clamping valve according to EN 201:2010. The start or the end position can be monitored. The position control is available for single and double solenoid valves.
Markets: • Industrial • Molding
Features/Benefits: • High functional limits – low forces resulting in safe operation also at high flow rates • Low pressure drop – resulting in low energy losses in operation • Wide product offering – many different options – all valves from one single source • Short delivery time – no warehousing necessary
Applications: • All types of safety relevant applications • Injection molding (safety component according to machinery directive 2006/42/EG)
Attention: The adjustment of the position control is factory set and sealed. Replacement and repairs can only be undertaken by Parker.
The fail-safe position of the directional valve during power failure is the spring offset or center position.
