P8S Continuous Position Sensors enable contactless monitoring of cylinder strokes from 32mm to 256mm. Continuous supplied data via analog output or IO-Link is ideally suited for quality and process control functions.

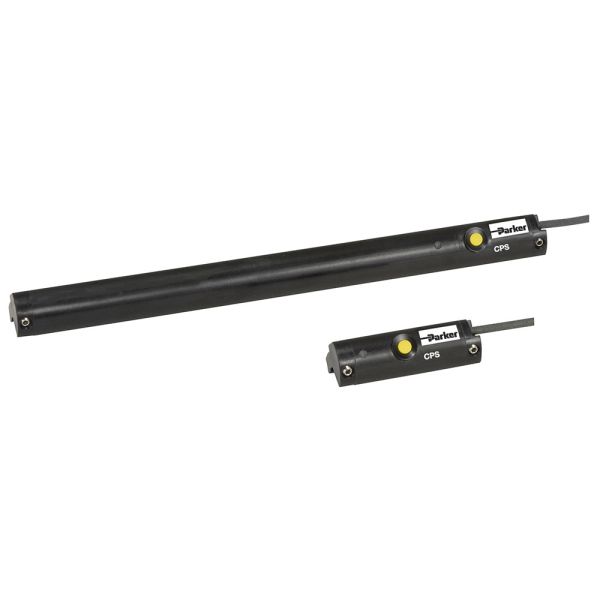

Parker's P8S Continuous Position Sensors continuously detect the position of the magnetic piston of pneumatic actuators using a direct, non-contact technology along the 32 to 256mm detection length of the sensor. For cylinders with common T-slot dimensions, sensors are mounted externally onto the cylinder within the profiled T-slot grooves without the need for additional accessories. Mounting on other cylinder types, ie round cylinders, is possible with optional adaptors. The sensor settings can be adjusted during installation or later during operation, using a teach pad or depending on the variant, using IO-Link. This continuous transfer of positional data via analog outputs or IO-Link upgrades the functionality of the pneumatic cylinders by making them more intelligent and as a result, more versatile and enables flexible machine concepts to solve tasks in areas such as quality monitoring and process control.
Features/Benefits: • Drop-in T-slot profile provides quick installation and replacement of sensors • External mounting allows for integration into the machine at any time • Non-contact measurement provides long service life • Sensor settings can be adjusted during installation or later during operation • Continuous supply of data enables flexible machining concepts • Continuous transfer of position data upgrades the functionality providing "inteligent" pneumatic cylinders improving versatility • Multiple defined switching points add flexibility • Advanced configuration options with data transmission via IO-Link
Applications: • Precise and measured control of pneumatic handling • Tensioning applications • Monitors quality and accuracy of assembled components • Maximized flexibilty of pick and place processes • Materials handling and identification
Technologies: • Direct non-contact sensing • Continuous detection • Sensor setting via teach-in button • IO-Link
Technical Characteristics: • Output function: Analog / IO-Link • Measuring range: 32mm to 256mm • Supply Voltage: 15 to 30 V DC • Enclosure rating: IP67 (according to EN 60529) • Cable: PUR (Polyurethane)
