| Maximum Operating Pressure | 1500 psi (Dependent on hose), 10.3 MPa, 103.0 bar |
|---|---|
| Division | Parflex Division |
| Application | Chemical Transfer, Fluid Control, Instrumentation, Food Processing, Laboratory, Public Works, Sampling |

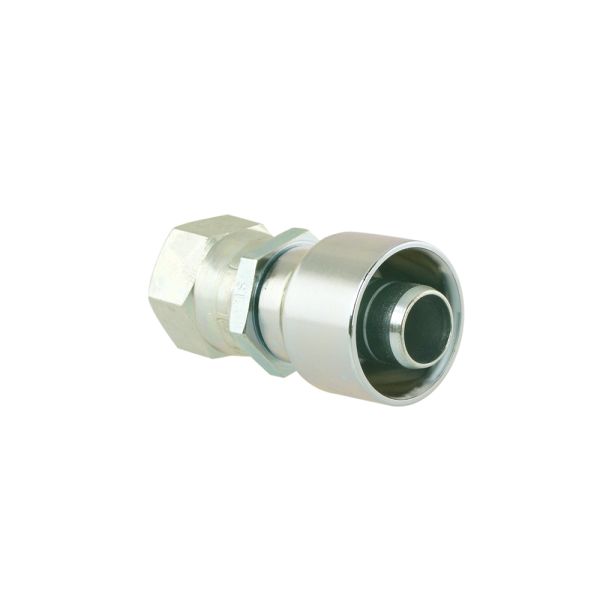

| Product Style | Female JIC 37° - Swivel |
| Specifications Met | n/a |
| Product Type | Hose Fittings |
| Body Material | Stainless Steel |
| Shape | Straight |
| Length (inch) | 2.02" |
| Connection 2 Size | 9/16"-18, 3/4"-16 inch Thread |
| Connection 1 Size | 3/4 inch Hose I.D., -8 (Size), 12.7 mm |
| Brand | Parker |
| Connection 2 Type | Female, Swivel, JIC 37° |
| For Fluid Type | Steam, Gases, Hydraulic Fluids, Chemicals, Water, Air (Pneumatic Media) |
| Hose I.D. (inch) | 0.5" |
| Hex Size | 7/8 inch (see drawing legend H) |
| Industry | Industrial Manufacturing Equipment, Transportation, Food & Beverage, Semiconductor, Healthcare & Life Sciences, Industrial Processing, Chemicals Processing |
| Connection 1 Type | Hose |
| Product Series | 93N |
| Configuration | Hose to Port |
| Technology | Fluid & Gas Handling |
| Connection Length | 1-3/8 inch Cut-off allowance (see drawing legend B), 35 mm |
| Fitting Length | 2.02 inch (see drawing legend A), 51.3 mm |
| Coating | None |
| Hex Size 1 | 3/4 inch (see drawing legend J) |
