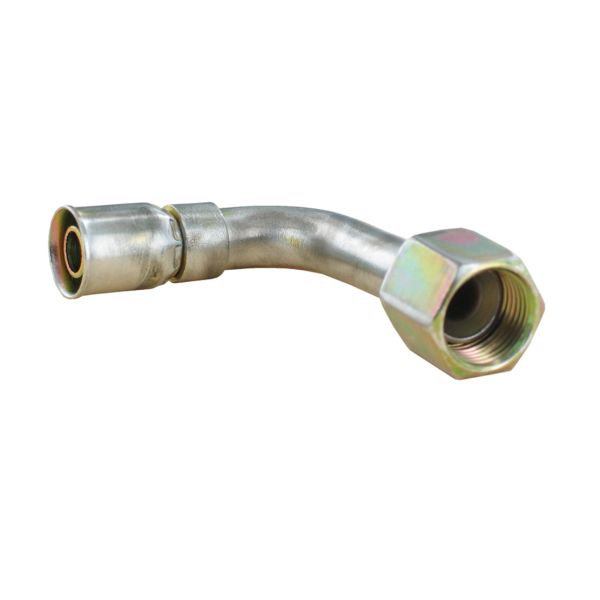

JIC SWVL 90D STEEL ELBOW

Details

Parker's 91/91N Series fittings are used with smooth bore, medium pressure PTFE hoses from the Parflex division. Our wide selection of crimp fittings for PTFE hoses include, but are not limited to, NPT, JIC and Seal-Lok™ designs with many fittings available in Stainless Steel for corrosive applications. The fittings have a lead-in feature at the base to simplify proper hose insertion and can be crimped with any of the Parkrimp machines. The dies for these crimpers include Parker's exclusive Parkalign® system, featuring a positive-stop design that positions the fitting in the die for a perfect crimp every time.

Markets:
• Industrial
• Air & Gas compressors
• Packaging machinery
• Printing and marking equipment

Features:
• Lead-in design
• Parkalign® dies

Applications:
• Chemical transfer lines
• General hydraulics
• Compressed air/gases
• Adhesive dispensing
• Coolant lines

More Information

More Information
Maximum Operating Pressure	20.7 MPa, 207 bar, 3000 psi (Dependent on hose)
Division	Parflex Division
Application	Chemical Transfer, Hydraulics, Tools & Equipment, General Industrial, Medical, Pneumatics, Ultra High Purity, Fluid Control, Instrumentation, Semiconductor
Product Style	Female JIC 37° - Swivel - 90° Elbow - Long Drop
Specifications Met	n/a
Product Type	Hose Fittings
Body Material	Steel
Shape	Elbow 90° - Long Drop
Tube Outside Diameter	n/a
Dimensional Weight	0.1177 lb
Length (inch)	1.66"
Connection 2 Size	7/16"-20 inch Thread, 7/16"-20
Connection 1 Size	-4 (Size), 4.8 mm, 3/16 inch Hose I.D.
Brand	Parker
Connection 2 Type	Female, Swivel, JIC 37°
For Fluid Type	Steam, Gases, Hydraulic Fluids, Chemicals, Water, Pharmaceutical Fluids, Air (Pneumatic Media), Oil
Hose I.D. (inch)	3/16"
Hex Size	n/a
Industry	Transportation, General Industrial, Food & Beverage, Semiconductor, Healthcare & Life Sciences
Connection 1 Type	Hose
Product Series	91N
Configuration	Hose to Port
Technology	Fluid & Gas Handling
Connection Length	1-1/8 inch Cut-off allowance (see drawing legend B), 29 mm
Fitting Length	42 mm, 1.66 inch (see drawing legend A)
Coating	Chromium 6 Free-plated
Hex Size 1	9/16 inch (see drawing legend H)
