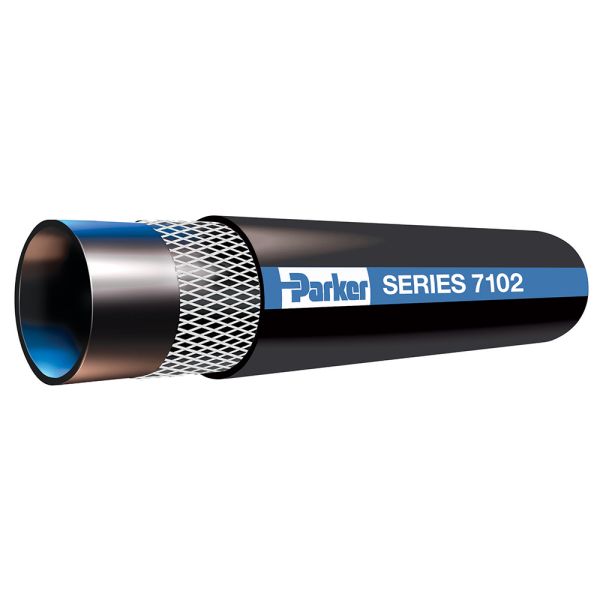

LOW TEMP MP 300PSI 3/4" ID

Details

Parker's Series 7102 Arctic Edge Low Temperature Oil Resistant Multipurpose Industrial Hose provides excellent service across multiple low temperature applications. The abrasion, oil, weather resistant and flexible hose resists stiffening and cracking for ease of handling to -70°F, and is qualified with permanent crimp couplings for a safe and secure connection. Series 7102 provides robust service in challenging cold environment applications.

Markets:

• Agriculture

• Aviation Ground Support Service

• Construction

• General Industrial

Features/Benefits:

• Tube: Black Class A nitrile for exceptional fuel and oil resistance to 212°F.

• Reinforcement: Multiple textile plies for strength and durability, and static wire for a path to conduct an electrical charge to ground.

• Cover: Black chloroprene for abrasion, oil and weather resistance and durability.

• Cover: Blue longitudinal stripe for easy identification.

• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.

Applications:

• Biodiesel (to B20 in dedicated service)

• Diesel

• Ethanol

• Gasoline

• Mild chemicals

• Oil

• Water

• Air compressor hose

• Air tool hose, including those subject to light oil mists for lubrication

• Cold weather service

• Refrigerated environments

• General transfer

Safety/Technical:

• Design Factor: 4:1

• Do not use in dry air applications (typically, air systems that do not expose the tube of the hose to lubricating oil mist from the compressor).

• Do not use for fuel transfer in regulated dispensing or engine service requiring API, NFPA, SAE, UL, ULC or any other agency approval or listing.

• Refer to the table in Catalog 4800 for fuel compatibility and service conditions.

• Refer to CrimpSource® for current crimp specifications.

More Information

More Information
Media	Air, Water, Mild Chemicals - Check your fluid compatibility with our catalogue chart., Lubricants (Oils), Fuels (Diesel) - Check fuel type with our catalogue chart., Fuels (Gasoline) - Check fuel type with our catalogue chart., Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart., Fuels (Biodiesel to B20 in dedicated service)
Maximum Operating Pressure	300 psi, 20.7 bar
Division	Hose Products Division
Compatible Fitting	HY Series
Application	Air, Multipurpose
Hose Inner Tube Material	Black, Nitrile
Inside Diameter	19.1 mm, 3/4 inch
Maximum Operating Temperature	212 °F, 100 °C
Minimum Operating Temperature	-57 °C, -70 °F
Minimum Bend Radius	6 inch, 152.4 mm
Outside Diameter	29.4 mm, 1.156 inch
Specifications Met	n/a
Cover Material	Chloroprene Rubber (CR)
Hose Reinforcement Material	4 Plies of Textile with Static Wire
Weight Parker	0.37 lb/ft, 0.55 kg/m
Maximum Working Pressure (psi)	300
Hose I.D. (inch)	3/4"
Cover Color	Black
Length per Package	400 ft
Package Type	Reel
