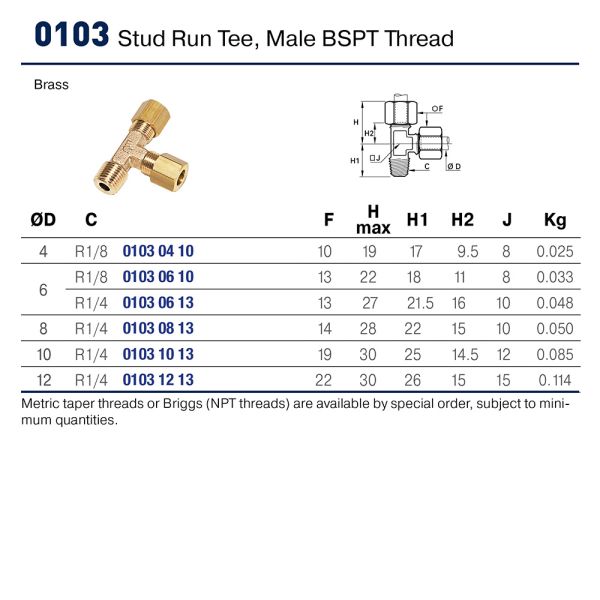

MAYSON SWIVEL

MALE PIPE ADAPTER

MALE - BRASS RUNTEE

Be the first to review this product

These "universal" fittings provide users with numerous connection options for a wide variety of tube materials without the need for tube threading or soldering.
This range guarantees excellent long-term sealing and performance.

Availability: In stock

SKU

0103 08 13

Available Qty

Lead Time

Details

This product is no longer available from Parker.

More Information

More Information
Media	Water, Compressed Air, Hydraulic Oil, machining oil, fuel, chemical fluids, disinfectants
Division	Low Pressure Connectors Europe Division
Application	Packaging, Pneumatics, Automotive Process, Lubrication, Industrial Machinery, Cooling, Fluid Transmission
Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-40 °C
Specifications Met	CNOMO: E07.21.115N (for robotic equipment in the automotive industry), DI: 97/23/EC (PED), RG: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), DI: 94/9/EC (ATEX)
Product Type	Brass compression fittings
Weight Parker	0.049 kg
Nut Material	Brass
Shape	Male stud run tee fixed thread
O-Ring Material	na
Sleeve Material	Brass
Connection 1 Thread Style	BSPT
Quantity per Box	10
Connection 2 Tube O.D. (mm)	8
Connection 1 Thread Size (metric)	R1/4
