Parker's wide range of Field Attachable Fitting Tools enable users to efficiently assemble some of Parker's most popular fittings onto the hose without the use of a crimper, dramatically reducing installation time.
Parker's wide range of Field Attachable Fitting Tools enable users to efficiently assemble some of Parker's most popular fittings onto the hose without the use of a crimper, dramatically reducing installation time. The four types of field attachable fittings that Parker manufactures that can be used in conjunction with these tools: • Two-Piece • Three-Piece Mandrel Style • Barb Type with Clamp • Barb Type - Push-On (Push-Lok Fittings) Note: It is important to follow the safety guide instructions when using field attachable fittings and tools on page E-57 of Parker's Hose Products Division Catalog 4400.
Mandrel Tool Kit - 22 Series: Parker's 22 Series Mandrel Tool Kit is for assembly of Parker 22 Series field attachable fittings. This version of the Mandrel Tool Kit is designed for JIC 37° flared fittings and SAE 45° fittings. The following sizes are included in the kit: -4, -5, -6, -8, -10 and -12.
Mandrel Tool Kit - 23 Series: Parker's 23 Series Mandrel Tool Kit is for assembly of Parker 23 Series field attachable fittings. This version of the Mandrel Tool Kit is designed for JIC 37° flared fittings. The following sizes are included in the kit: -4, -5, -6, -8, -10, -12, and -16.

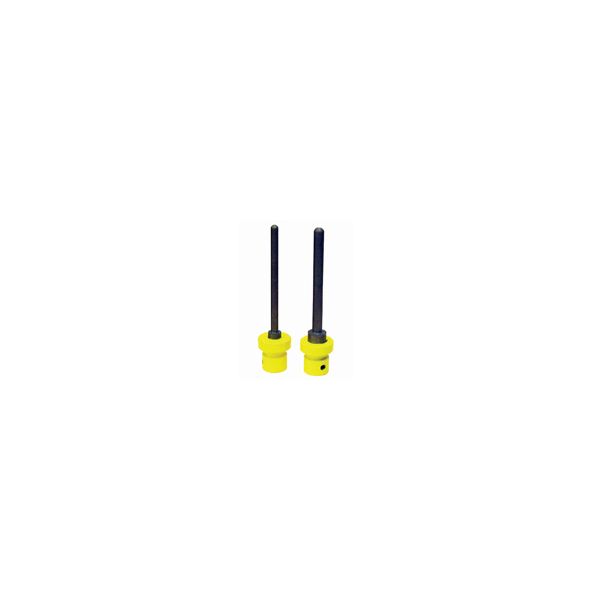

Mandrels - 25 Series: This version of Parker's Mandrel Tool Kit is for assembly of Parker 25 Series field attachable fittings for use with 271 transportation hose. These assembly mandrels can be used with a common bench vise or on the TH2-7 push-on stand.
Assembly Tools - 22 Series: These Assembly Tools from Parker are for assembly of Parker 22 Series field attachable fittings. The following sizes are included in the kit: -16, -20, -24, -32.
Markets: • Transportation • RV & Bus • Military • Construction • Agriculture • Grounds & Building Maintenance • Forestry • Railroad • Utility Equipment • Personnel Lift Equipment • Machine Tool • Oil Field Service • Waste & Refuse • Material Handling • Marine • Paving & Road Maintenance • Ground Support Equipment • Industrial • Mining • Automotive
Features/Benefits: • Easily make hose assemblies right on the job site without a crimper or expensive installation equipment • Kit includes a wide range of tools for various fitting sizes and configurations, keeping your workspace organized and clean
Applications: • Assists in the assembly of field attachable fittings
