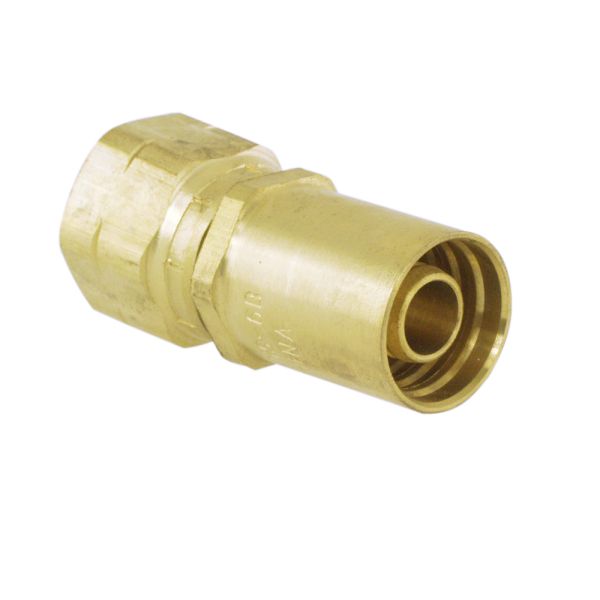

MAR. PARFLEX FITTING

Details

Parker MS series brass hose fittings, designed for use in hydraulic marine steering applications, are available in both permanent crimp and field attachable constructions for corrosion resistance in fresh water and salt water environments. They are qualified for use with Parker MSH (Marine Steering Hose) and available in both 5/16” (-5) and 3/8” (-6) sizes. When connected to the commonly used brass adapters, galvanic corrosion is also minimized with the brass MS series hose fittings.

Markets:
• Marine

Features/Benefits:
• Parkalign® dies

Applications:
• Hydraulic marine steering systems
- Outboard motors

More Information

More Information
Maximum Operating Pressure	1500 psi (Dependent on hose), 103 bar, 10.3 MPa
Division	Parflex Division
Application	Medium Pressure Hydraulics, Marine
Specifications Met	n/a
Product Type	Hose Fittings
Body Material	Brass
Shape	Straight
Connection 2 Size	5/8"-18 inch Thread, 5/8"-18
Connection 1 Size	5/16 inch Hose I.D., -5 (Size), 8 mm
Brand	Parker
Connection 2 Type	Female, Swivel, 45° Flare SAE, Female SAE 45° - Swivel, Permanent Crimp
For Fluid Type	Water, Lubricants (Oils), Petroleum Hydraulic Fluids
Hex Size	5/8 inch (see drawing legend H)
Industry	Marine
Connection 1 Type	Hose
Configuration	Hose to Port
Technology	Fluid & Gas Handling, Hydraulics
Connection Length	29 mm, 1-1/8 inch Cut-off allowance
Fitting Length	45 mm (see drawing legend A), 1.75 inch
Coating	n/a
Hex Size 2	13/16 inch (see drawing legend J)
Connection 1 Hose Inside Diameter	5/16" (I.D.)
