| Maximum Operating Pressure | 450 psi, 31 bar |
|---|---|
| Division | Fluid System Connectors Division |
| Maximum Operating Temperature | +93 °C, +200 °F |
| Minimum Operating Temperature | -17 °C, 0 °F |
| Specifications Met | n/a |

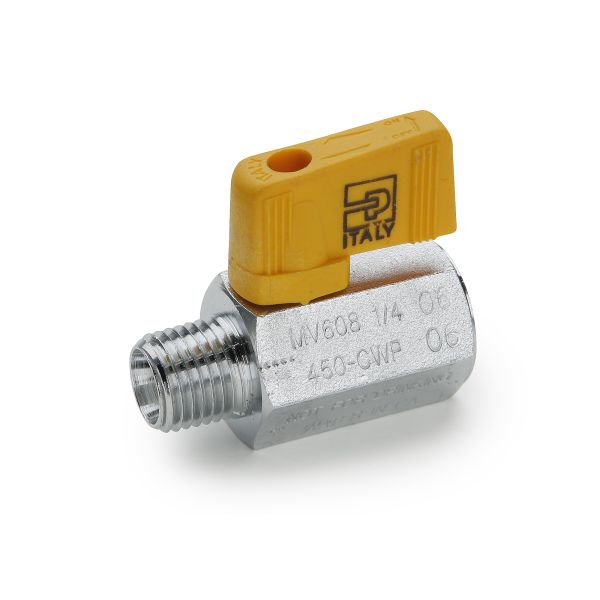

| Product Type | Ball Valve |
| Body Material | Chrome Plated Brass |
| Connection 2 Thread Size (inch) | 1/4 |
| Style | Male to Female Pipe Ends |
| Connection 1 Thread Size (inch) | 1/4 |
| Connection Type | NPT |
| Seal Material | PTFE |
| Lock Type | Non-Locking |
| Maximum Working Pressure (psi) | 450 |
| Configuration | In-line |
| Mounting Type | In-Line |
| Maximum Flow Rate | 5.8 Cv |
| Actuation Type | Manual |
| Operation Type | on/off |
| Function | 2-Way |
| Ball Material | Chrome Plated Brass |
| Handle | Polyamide Wedge Lever |
| Connection Size | 1/4 inch |
| Seat Material | PTFE |
| Connection 1 Thread Style | Male Pipe |
| Connection 2 Thread Style | Female Pipe |
| Handle Type | Compact |
| Orifice Size | N/A |
| Vacuum Rating (inch of Hg) | 28 |
| Maximum Working Pressure (Bar) | 31 |
