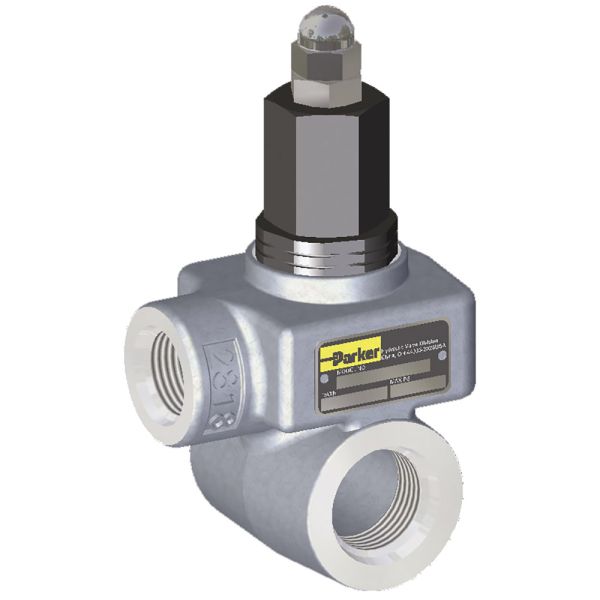

Parker’s WJL In-line Relief Valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.
Parker’s WJL is a compact, low profile relief design that is either shim or screw adjustable from 500 to 2000 PSI. Typical applications include main system pressure limiting as well as actuator protection.
Markets: • Aerial • Agricultural Machinery • Construction Equipment • Defense • Forestry Equipment • Marine • Material Handling Equipment • Mining • Misc Transportation • Oil & Gas • Other Mobile • Other Natural Resources • Rail • Refuse • Turf Equipment • Vocational and Municipal Equipment
Features/Benefits: • High-tensile cast iron body • Compact, low profile design • Hardened and ground poppet • Standard porting options are 1/2” NPT and 3/4” NPT as well as SAE-10 and SAE-12 • The WJL is rated at 3000 PSI with SAE ports with a maximum recommend pump or actuator flow of 25 GPM
Applications: • Suitable for various mobile applications
