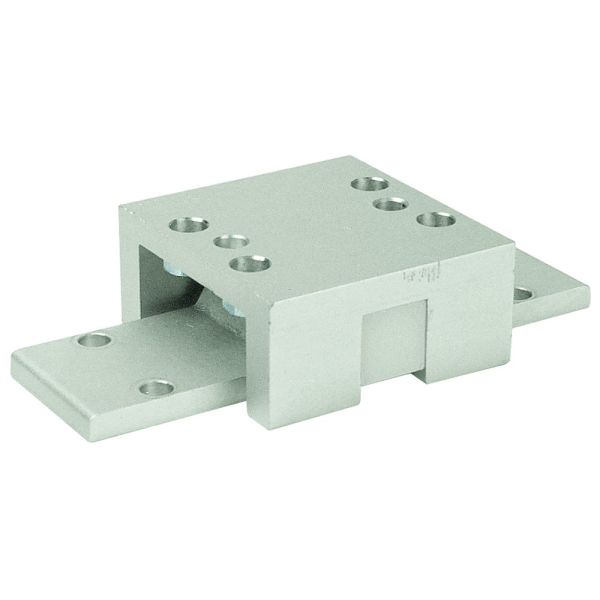

MOUNT,CLEVIS,OSPE25 CM-E25

OSP Clevis are used to combine fast and easily rodless cylinders with external guides. They are available for OSP-P and OSP-L and for bore Ø10 to Ø80mm. When external guides are used parallelism deviations can lead to mechanical strain on the piston. This can be avoided by the use of a clevis mounting. In the drive direction, the mounting has very little play. Freedom of movement is provided as follows:

• Tilting in direction of movement

• Vertical compensation

• Tilting sideways

• Optional stainless steel version for bores Ø16 to Ø80mm.

Markets

• Factory Automation

• Machine Tools

• Miscellaneous Industrial

• Miscellaneous Manufacturing

• Packaging Machinery

• Printing and Marking Equipment

• Medical

• Other Life science

• Material Handling Equipment

• Food & beverage

• Plastic processing

• Water

• Bus & Coach

• Rail

Features/Benefits

• Solid aluminium version / Option stainless steel screws

• Easy to clamp on the cylinder

Applications

• Door opening system

• Pick and place applications

• Durability test bench

• Food processing

• Packaging, labeling and wrapping systems

• Pusher, picker and gripper applications

• Assembly of a modular steering kit

• Roll cleaning

• Overhead thrust cleaning

• Feeding

• Cutting
