MPW 1000 BLK 3/4"ID

Details

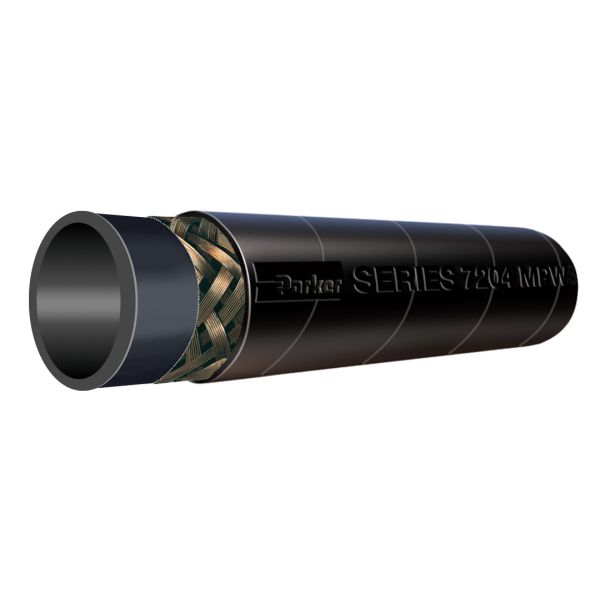

Parker's Series 7204 MPW-1000 High Pressure Wire Braid Multipurpose Oil Resistant Hose provides excellent service across a wide variety of media and applications. The hose is durable, crush resistant and kink resistant for easy handling and long service life, and the rugged cover resists abrasion, oil and weathering to provide maximum performance. Series 7204 is qualified with permanent crimp couplings for a safe and secure connection, and is a versatile hose for many common high pressure industrial applications.

Markets:

• Construction

• General Industrial

Features/Benefits:

• Tube: Black Class A nitrile for exceptional oil resistance to 300°F.

• Tube: Black Class A nitrile for rust inhibitor resistance in steam systems to 368°F.

• Reinforcement: One wire braid for extreme strength and a slim profile.

• Cover: Black chloroprene for abrasion, oil, weathering resistance; perforated for steam service.

• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.

Applications:

• Air

• Biodiesel (to B20 in dedicated service)

• Diesel

• Ethanol

• Gasoline

• Hot asphalt, glue, tar, wax

• Mild chemicals

• Oil

• Steam (to 150 psi @ 368°F max)

• Water

• Construction equipment

• Hot tar wands

• Manufacturing and processing plants

• Refineries

• Steam cleaning

• General transfer

Safety/Technical:

• Do not use for fuel transfer in regulated dispensing or engine service requiring API, NFPA, SAE, UL, ULC or any other agency approval or listing.

• Refer to the table in Catalog 4800 for fuel compatibility and service conditions.

• Do not use in dry air applications (typically, air systems that do not expose the tube of the hose to lubricating oil mist from the compressor).

• Refer to CrimpSource® for current crimp specifications.

More Information

More Information
Media	Air, Water, Mild Chemicals - Check your fluid compatibility with our catalogue chart., Lubricants (Oils), Steam, Fuels (Diesel) - Check fuel type with our catalogue chart., Fuels (Gasoline) - Check fuel type with our catalogue chart., Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart., Fuels (Biodiesel to B20 in dedicated and non-dedicated service), Chemicals (Wax), Chemicals (Glue), Hot Asphalt (Tar)
Maximum Operating Pressure	68.9 bar, 1000 psi (150 PSI for Steam)
Division	Hose Products Division
Compatible Fitting	43 Series
Application	Air, Multipurpose
Hose Inner Tube Material	Black, Nitrile
Inside Diameter	19.1 mm, 3/4 inch
Maximum Operating Temperature	149 °C (Other Media), 70 °C (Saturated Steam to 187 @10 bar), 300 °F (Other Media), 158 °F (Saturated Steam to 368 @150 psi)
Minimum Operating Temperature	-20 °F, -29 °C
Minimum Bend Radius	10 inch, 254 mm
Outside Diameter	1.187 inch, 30.1 mm
Specifications Met	n/a
Cover Material	Chloroprene Rubber (CR)
Hose Reinforcement Material	1 Braid of Wire
Weight Parker	0.77 kg/m, 0.52 lb/ft
Hose I.D. (inch)	3/4"
Cover Color	Black
Length per Package	500 ft
Package Type	Reel
Cover Structure	Perforated, Wrapped
