4000 Series Couplers (hydraulic) 3000 psi, connect with 4000 Series Nipples and 1/2"" 8010 Series Nipples (ISO 5675, Pioneer male tips). Parker's 4000 Series are double shut-off quick couplings with poppet or ball valve options. Couplers have a manual sleeve. Push-pull breakaway sleeve is only available on 1/4" body size with 9/16 - 18 ORB thread, part number 4050P-T6.

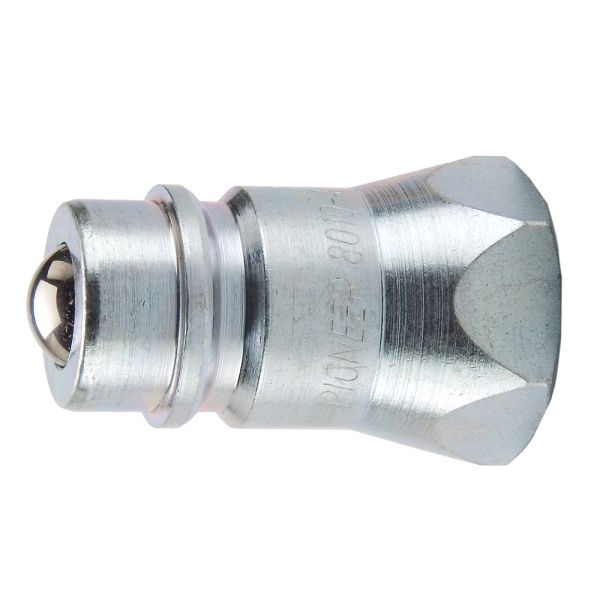

4000 Series Nipples (hydraulic) 3000 psi, connect with 4000 Series Couplers and 4200 Series Couplers. Nipples are available with a poppet or ball valve.
Technical Characteristics: • Sizes: 1/4” – 1” • Material: Steel • Port Ends: Female NPTF, Female ORB, Male ORB, Female BSPP • Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets: • Agriculture • Mobile Equipment • Construction • Snow removal • Industrial
Features/Benefits: • Proven design for rugged applications • Poppet or ball valve option • Critical parts are hardened for durability • 1/2" size globally connects with Pioneer universal male tips (nipples) complying to ISO 5675
