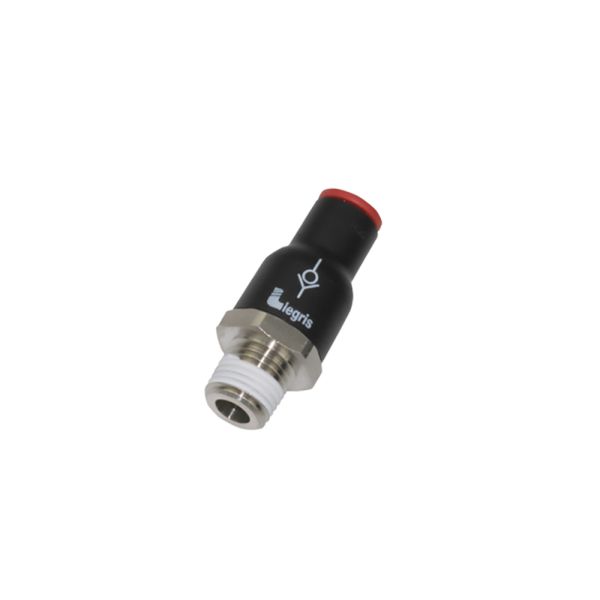

Non-return valves allow compressed air to flow in one direction and prevent it from flowing in the other. Mounted upstream of the circuit, they provide total protection. With different color codes for supply (green) and exhaust (red) version, you’ll be sure to not make a mistake. By making your installation safer and more intuitive, your installation cost is reduced.
Industries:
• Industrial manufacturing equipment
Features/Benefits:
• Variety of Applications
• Wide range of choice from diameter 4 to 12 mm
• Push-in connection: ease of use
• Threaded or push-in version
• Cracking Pressure value : 0.3 bar
• Compact and lightweight
• Lip seals for improved sealing performance
• Vibration resistance
• Tried and test durability according to DI 2006/42/CE.
• Symbol showing the flow direction.
• Color codes: Green: supply version / Red: exhaust version
Applications:
• Automotive process
• Pneumatics
• Semiconductor
• Packaging
• Manufacturing equipment
Technologies:
• Function fitting
• Non-return valve
• Pneumatic systems
| Maximum Operating Pressure | 10 bar |
|---|---|
| Division | Fluid System Connectors Division, Low Pressure Connectors Europe Division |
| Application | Packaging, Pneumatics, Robotics, Textile, Automotive Process |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | 0 °C |
| Product Style | Check Valve |
| Product Type | Non-Return Valves |
| Weight Parker | 0.018 kg |
| Body Material | Technical Polymer |
| Shape | In-line non-return valve exhaust male |
| Connection 2 Size | 1/4", 1/4 INCH (O.D) |
| Connection 1 Size | 6 mm, NPT 1/4 (Thread) |
| Seal Material | NBR |
| Flow Rate | n/a |
| Brand | Parker, Legris |
| Connection 2 Type | Male NPT |
| For Fluid Type | Air |
| Hex Size | 19 mm |
| Industry | Industrial Manufacturing Equipment, Industrial Processing |
| Connection 1 Type | Tube, Male NPT |
| Configuration | Tube to Port |
| Technology | Pneumatics |
| Height | 36 mm |
| Minimum Operating Pressure | 1 bar |
| Flow Direction | Exhaust Version |
| Cracking Pressure | 0.3 bar |
| Quantity per Box | 10 |
