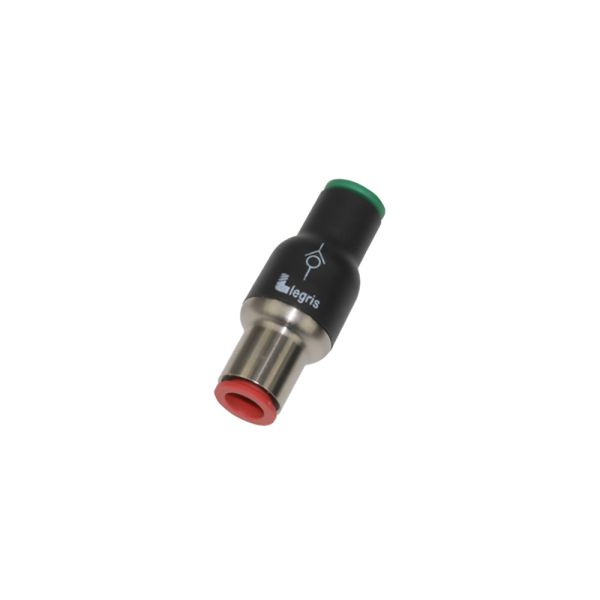

Non-return valves allow compressed air to flow in one direction and prevent it from flowing in the other. Mounted upstream of the circuit, they provide total protection. With different color codes for supply (green) and exhaust (red) version, you’ll be sure to not make a mistake. By making your installation safer and more intuitive, your installation cost is reduced.
Industries:
• Industrial manufacturing equipment
Features/Benefits:
• Variety of Applications
• Wide range of choice from diameter 4 to 12 mm
• Push-in connection: ease of use
• Threaded or push-in version
• Cracking Pressure value : 0.3 bar
• Compact and lightweight
• Lip seals for improved sealing performance
• Vibration resistance
• Tried and test durability according to DI 2006/42/CE.
• Symbol showing the flow direction.
• Color codes: Green: supply version / Red: exhaust version
Applications:
• Automotive process
• Pneumatics
• Semiconductor
• Packaging
• Manufacturing equipment
Technologies:
• Function fitting
• Non-return valve
• Pneumatic systems
| Maximum Operating Pressure | 10 bar |
|---|---|
| Division | Low Pressure Connectors Europe Division |
| Application | Packaging, Pneumatics, Robotics, Textile, Automotive Process |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | 0 °C |
| Product Style | Check Valve |
| Product Type | Non-Return Valves |
| Weight Parker | 0.066 kg |
| Body Material | Technical Polymer |
| Shape | In-line non-return valve |
| Connection 2 Size | 3/8", 3/8 INCH (O.D) |
| Connection 1 Size | 10 mm, NPT 1/4 (Thread) |
| Seal Material | NBR |
| Flow Rate | 2230 NL/MIN |
| Brand | Parker, Legris |
| Connection 2 Type | Tube |
| For Fluid Type | Air |
| Industry | Industrial Manufacturing Equipment, Industrial Processing |
| Connection 1 Type | Tube |
| Configuration | Tube to Tube |
| Technology | Pneumatics |
| Maximum Flow Rate | 2230 NL/min |
| Height | 64 mm |
| Minimum Operating Pressure | 1 bar |
| Flow Direction | In-Line Version |
| Cracking Pressure | 0.3 bar |
| Quantity per Box | 5 |
