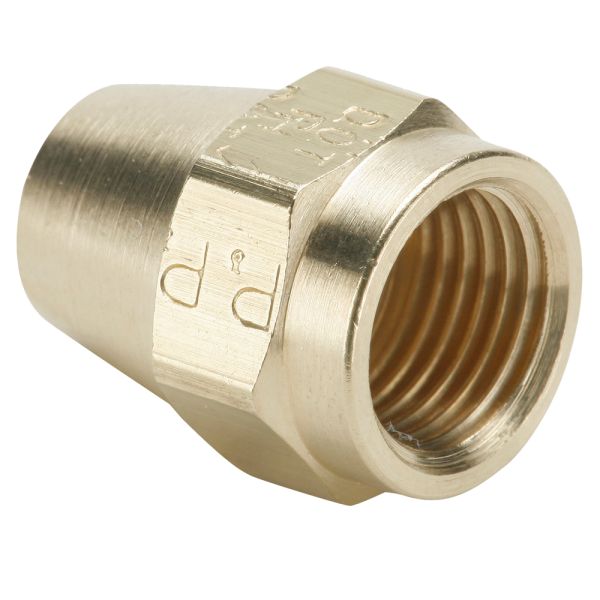

Being the world's leader in leak free technologies Parker's air brake - AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106. AB fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel.
Use with copper air brake tubing or the following Parker Parflex Division tubing.
• 1120 Nylon Air Brake Tubing (with a tube support)
• 1320 Quantum Elastomeric Air Brake Tubing (with a tube support)
Markets:
• Heavy duty truck
• Trailer
• Mobile
Features/Benefits:
• D.O.T. compression style fittings for repairing truck and trailer air brake lines
• For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
• Meets D.O.T. FMVSS571.106 performance
• Meets functional requirements of SAE J246
• All brass air brake fitting
• Reusable
• Use with copper tubing in air brake systems
• Pre-applied thread sealant
Applications:
• Copper air brake lines
• Coolant lines
• Fuel lines
Custom configurations and sizes are available upon request. Contact us for additional information.
| Maximum Operating Pressure | 400 psi, 27 bar |
|---|---|
| Division | Fluid System Connectors Division |
| Application | Air Brake |
| Maximum Operating Temperature | 250 °F, 121 °C |
| Minimum Operating Temperature | -53 °C, -65 °F |
| Specifications Met | DOT FMVSS 571.106, SAE J246 |
| Tube Material | Annealed Copper |
| Nut Material | Brass |
| Body Material | Brass |
| Connection 1 Style | Compression |
| Connection 2 Tube O.D. (inch) | na |
| Connection 2 Thread Size (inch) | na |
| Shape | Nut |
| Connection 1 Tube O.D. (inch) | 3/8 |
| Connection 2 Style | na |
| Style | Tube |
| Sleeve Material | Brass |
| Thread Sealant Material | Vibra-Seal 516 |
