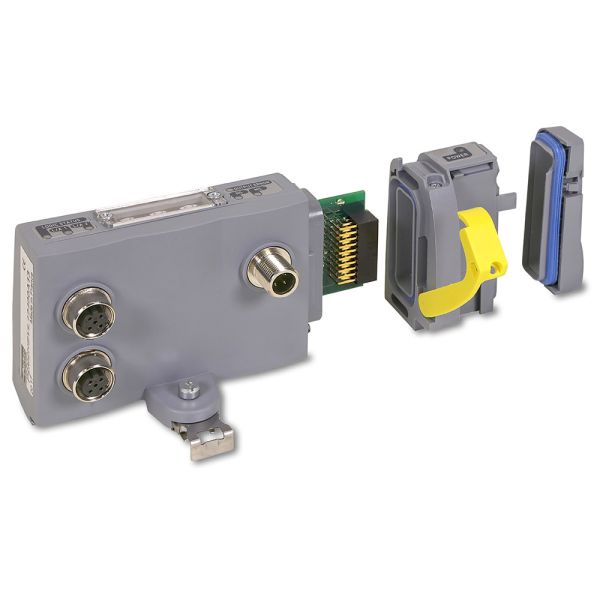

P2M ETHERNET IP COM MODULE

The P2M Industrial Ethernet node is a 24 digital outputs (pilot solenoids) modules allowing the connection of three of our valve ranges Moduflex Valve, H Series Micro and H Series ISO (5 sizes of 15407-2 & 5599-2) to the most popular industrial ethernet networks. It alows a low-cost network connection with easy integration and simple to use diagnostics.

Features / Benefits:
The product is designed to reduce the overall connection cost of the equipment, help eliminate the risk of missed-connection while reducing setup time and increase the inter-operability for ease of integration within exiting topology.

• Connectivity - The P2M Ethernet node can connect a Moduflex, H Series Micro or H Series ISO Valve standard or Universal manifold via industrial Ethernet Protocols. Valve configurations allows up to 19 pilot solenoids with Moduflex Valve and up to 24 pilot solenoids when used with H Series Micro & H Series ISO valves.

• Diagnostics – The P2M Ethernet node provides local diagnostic via LED’s and remotely via the Ethernet Network. Diagnostics such as voltage monitoring, temperature warnings, solenoid short circuit and communication error simplify diagnostics and support predictive maintenance.

• Easy Integration - The P2M Ethernet node offers an embedded Webpage for monitoring and configuring purposes. It offers ease of connection with the ability to select a quick start mode. Easy to configure and utilize with no dedicated tools required.

• Safe Power Capable – The P2M Ethernet node is “Safe Power Capable” which allows for test pulse (OSSD) compatibility and can be supplied auxiliary power from a safe output device following machinery directives.

• Suitable for use with EtherNet/IP, ProfiNET IO, EtherCAT, Ethernet Powerlink, Modbus TCP and CC-Link IE network protocols

Markets:
• In-Plant Automotive
• Packaging
• General industrial

Applications:
• Material Handling
• Vehicle Body Assembly
• Assembly Line
• End of Arm Tooling (EOAT)
• Automated Industrial Equipment
