FILTER HYD HIGH PRESS

HYDRAULIC PRESSURE FILTER

PARKER PRESSURE FILTER

Be the first to review this product

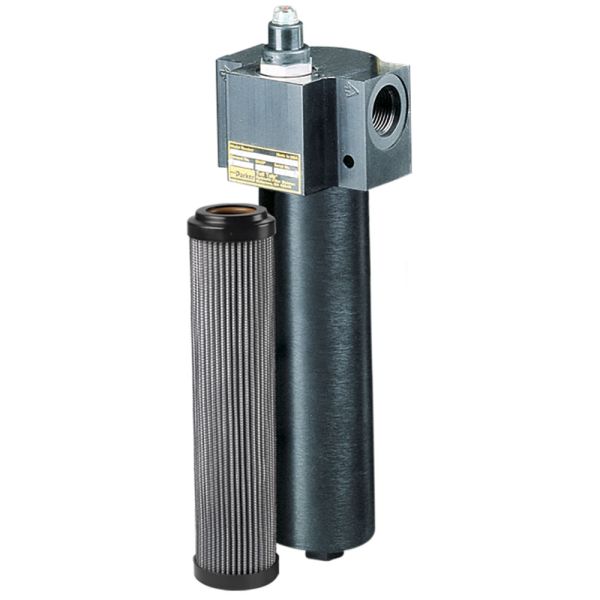

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

Availability: In stock

SKU

15P205QBE2KS121

Available Qty

Lead Time

Details

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Filter Series has a rated fatigue pressure of up to 2,000psi. With its high pressure capability and lightweight design, the 15P/30P Series is an ideal solution for mobile applications. Single and double length bowls are available to cover a wide range of flow rates up to 45gpm. The duplex option comes with a diverter valve to allow for element change out on critical applications where the system cannot be shut down. Various seal, indicator, and porting options make it easy for users to integrate the 15P/30P Series into their hydraulic system.

More Information

More Information
Division	Engine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature	107.0 °C, 225.0 °F
Product Style	Hydraulic Filter
Product Type	Hydraulic Filter
Weight Parker	4.6 lb ( 2.1 kg)
Seal Material	Nitrile
Flow Rate	75.0 L/min, 20.0 gal/min, 20 GPM (75 LPM)
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258
Port Type	SAE-12 ports
Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6
Micron Rating	05Q microglass
Filter Element Type	Cartridge
Indicator Type	electrical/visual DIN 43650 style connection
Compatible Element	931617Q
Pressure Rating	206.9 bar, 3000 psi
Mounting Style	Inline
Bypass Valve Pressure Rating	50.0 psid, 3.5 bar
Port Connection Type	SAE-12 ports
Indicator Pressure Setting	3.5 bar, 50 psi
