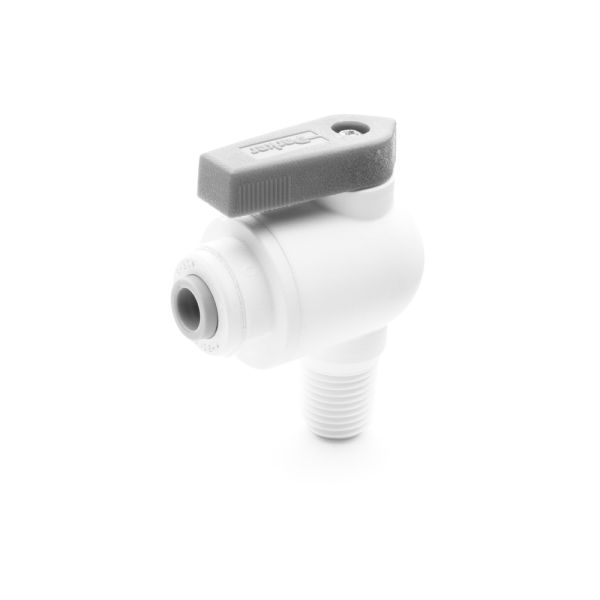

Parker's polypropylene ball valves save cost with built-in LIQUIfit, TrueSeal and Par-Barb connections eliminating the need for a secondary fitting. The compact design allows for easy assembly and access where space is at a premium. Polypropylene ball valves meets all FDA and NSF-51 requirements for food contact.
Markets:
• Water Filtration
• Beverage Dispensing
• Bottling
• Semi-conductor
• Chemical
Features/Benefits:
• Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting
• Low-profile design allows for easy assembly and access where space is limited
• Bi-directional flow foe maximum productivity
• Meets FDA and NSF-51 requirements for food contact
• Wide chemical acceptance range
• EPDM seals
• Push-to-Connect and barbed connections
Applications:
• Water
• Beverages
• Food
• Pneumatic circuits
Custom configurations and sizes are available upon request. Contact us for additional information.
| Division | Fluid System Connectors Division |
|---|---|
| Product Style | Tube to Male Pipe |
| Specifications Met | NSF 51, FDA, NSF-61 |
| Shape | 90° Elbow |
| Dimensional Weight | 0.29136690647482016 lb |
| Connection 2 Size | 1/4 inch |
| Connection 1 Size | 1/4 inch |
| Connection 3 Size | N/A |
| Seal Material | EPDM |
| Connection 2 Type | Male NPT Thread |
| Connection 1 Type | Push-to-Connect |
| Connection 3 Type | N/A |
| Color | White |
| Seat Material | EPDM |
| Orifice Size | .19 inch |
