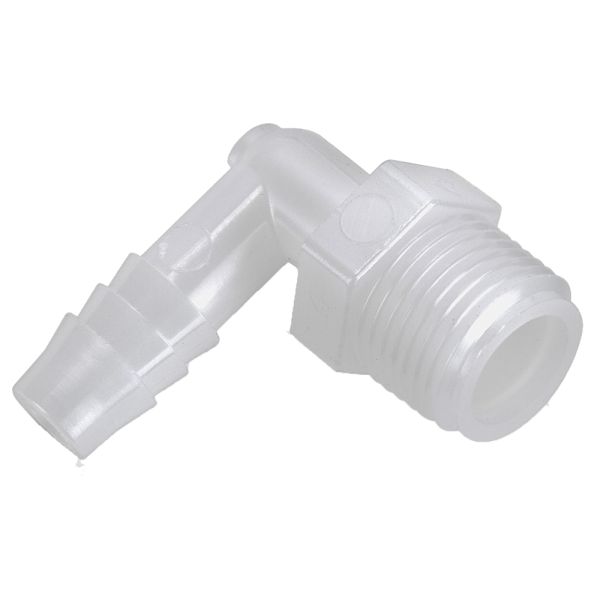

Parker's Par-Barb fittings are injection molded from high strength chemically inert white nylon and black polypropylene materials. Both materials are FDA and NSF-51 compliant. Par-Barb fittings are specially engineered with a four barb design that generates the maximum gripping and sealing power when combined with a hose clamp. Available in barbed, pipe and garden hose configurations ranging in sizes from 1/8” to 1 ½”.
Use with a variety of rubber tubing and hoses and the following Parker Parflex Division tubing.
• Polyurethane 90-95 Durometer Shore A
• Vinyl
Markets:
• Water
• Beverage
• Semi-conductor
• Filtration
• Food
Features/Benefits:
• Molded from high strength chemically inert thermoplastic materials
• Multiple barb design generates maximum gripping and sealing
• Meets FDA and NSF-51 requirements for food contact
• White Nylon and Black Polypropylene material
• 1/8" I.D. - 1 1/2" I.D.
Applications:
• Water
• Irrigation
• Reverse Osmosis
• Deionized water systems
• Pollution control
Custom configurations and sizes are available upon request. Contact us for additional information.
| Maximum Operating Pressure | 125 psi, 8.5 bar |
|---|---|
| Division | Fluid System Connectors Division |
| Application | Food Processing, Beverage Dispensing, Pneumatic Systems, Chemical Dispensing |
| Maximum Operating Temperature | +93 °C, +200 °F |
| Minimum Operating Temperature | -40 °F, -40 °C |
| Specifications Met | NSF 51, FDA |
| Tube Material | Vinyl, Polyurethane, Rubber Hose |
| Body Material | Nylon, White |
| Connection 1 Style | Barb |
| Shape | Elbow 90° |
| Connection 2 Thread Size | 1/4" |
| Connection 2 Type | Male Pipe |
| For Fluid Type | Water, Air, Other Compatible Fluids |
| Configuration | Barb to Pipe |
| Connection 1 Hose I.D. (inch) | 3/16" (I.D.) |
| Connection 2 Hose I.D. (inch) | n/a |
