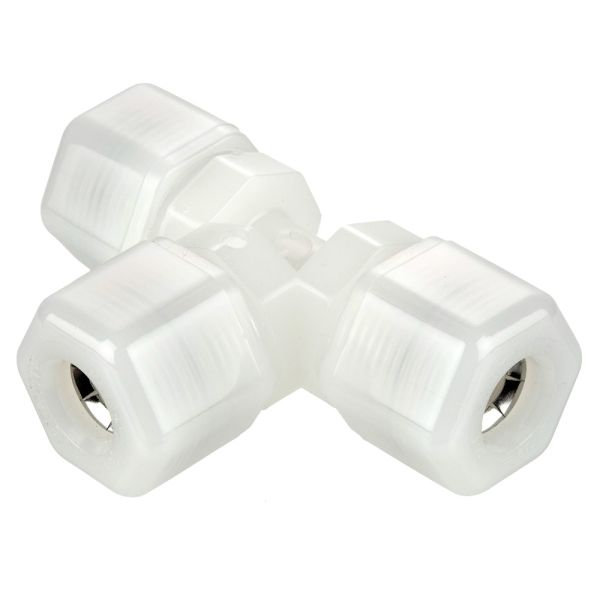

Parker's Fast & Tite fittings are a compression style fitting that installs in seconds without tools and provides a tight, sure, leak proof seal without clamps or adjustments. A unique grab ring for tube retention, coupled with a Nitrile o-ring creates a positive seal and assures good tube retention with only hand tight assembly.
Use with soft metal, glass tubing and the following Parker Parflex Division tubing.
• Polyethylene
• Nylon
• Polypropylene
• Polyurethane
• PTFE
• FEP
• PFA
Markets:
• Water Filtration
• Beverage Dispensing
• Packaging
• Life Science
• Bottling
• Semi-Conductor
Features/Benefits:
• White or black Polypropylene or white Nylon
• Installs in seconds without tools
• 302 stainless steel grab ring for tube retention
• Nitrile O-ring for positive seal
• FDA compliant , NSF-51
• Hand tight assembly
Applications:
• Water Lines
• Beverage Lines
• Food
• Cooling Systems
Custom configurations and sizes are available upon request. Contact us for additional information.
| Media | Air, Water, Other Compatible Fluids |
|---|---|
| Maximum Operating Pressure | 150 psi, 10 bar |
| Division | Fluid System Connectors Division |
| Application | Dispensing, Purification, Filtration |
| Maximum Operating Temperature | +93 °C, +200 °F |
| Minimum Operating Temperature | -40 °F, -40 °C |
| Specifications Met | NSF 51, FDA |
| Tube Material | Thermoplastic, Soft Metal, Glass |
| Body Material | Nylon |
| Shape | Tee |
| Dimensional Weight | 0.5504 lb |
| O-Ring Material | Nitrile |
| Connection 1 Tube Outside Diameter | 3/8" (O.D.) |
| Connection 2 Tube Outside Diameter | 3/8" (O.D.) |
| Connection 2 Type | Compression |
| Connection 1 Type | Compression |
| Configuration | Tube to Tube |
| Gripping Ring Material | 302 Stainless Steel |
