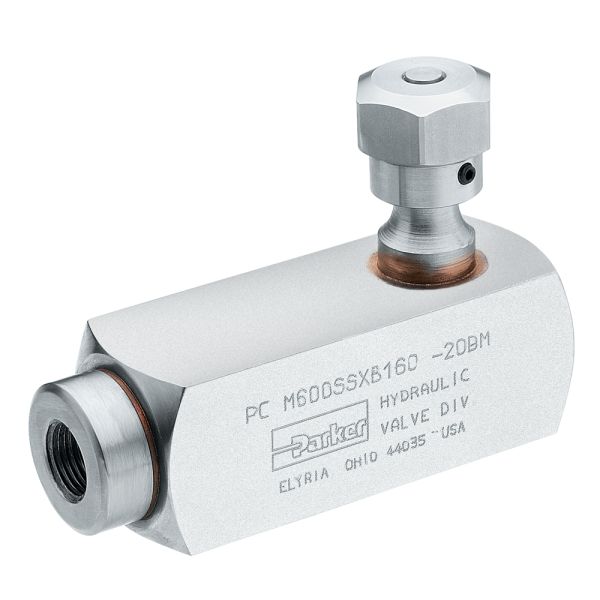

Parker’s PC*M Pressure Compensated Flow Control metering valve comes with an adjustable needle providing hydraulic pressure control. The adjustable setting on the flow regulator valve can be secured with a standard set screw or a thumbscrew option that does not require additional tools. Available as steel and stainless-steel flow control valves.
Markets:
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits:
• Port options include NPT and SAE
• Available with reverse flow check
• Port sizes available in 6 sizes from ¼” to 1 ¼”
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
• Set screw locks the valve on a desired setting
Applications:
• Suitable for general hydraulic applications
| Media | Oil |
|---|---|
| Maximum Operating Pressure | 3000 psi |
| Division | Hydraulic Valve Systems Division |
| Maximum Operating Temperature | 250 °F |
| Minimum Operating Temperature | -40 °F |
| Body Material | Steel |
| Connection Type | SAE, Female - Female |
| Seal Material | Nitrile |
| Brand | Colorflow |
| Configuration | Female - Female |
| Mounting Type | In-Line, Inline |
| Maximum Flow Rate | 25 gal/min, 25 |
| Actuation Type | Hydraulic |
| Maximum Pressure Setting | N/A |
| Function | Pressure Compensated Flow Control |
| Connection Size | #12, 12 SAE |
| Knob Style | Standard Knob |
| Reverse Check | Without Check |
