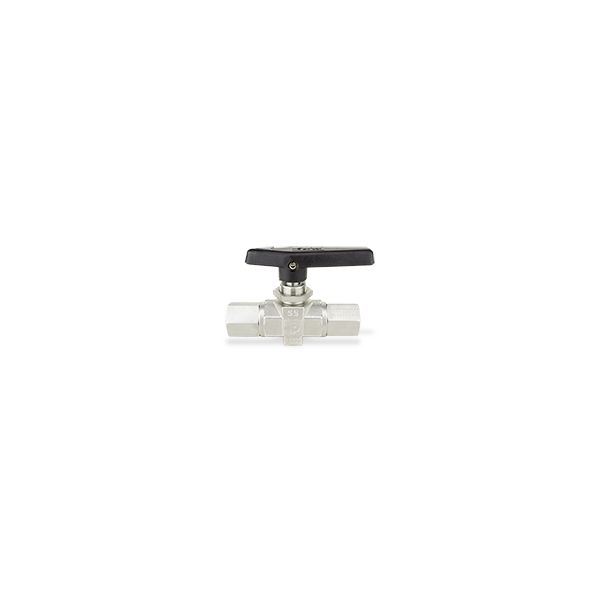

Parker's two way ball valves, with their "free floating " ball design, offer superior performance with quick 1/4 turn on -off control of fluids in a wide variety of pressure and temperature applications.
Parker's B Series Ball Valves are available manually, pneumatically, and electrically actuated. They provide quick on-off control of fluids utilized in process and instrumentation applications. A broad selection of valve body, seat, and seal materials provide a wide range of pressures (up to 6,000 PSI) and temperatures (up to 450F/232C) at which the valve may be used. Markets: • Chemical Plants • Refineries • Power Plants • Petrochemical Plants
Features/Benefits: • Free floating ball design provides seat wear compensation. • Available in 316 Stainless Steel and Brass. Monel® Alloy 400 and Hastelloy® C-276 construction available upon request. • Micro-finished ball provides a positive seal. • Straight through flow path for minimum pressure drop. • Wide variety of US Customary and SI ports. • 90° actuation. • Panel mountable. • Adjustable PTFE stem seal can be maintained in-line. • Handle indicates flow direction. • Low operating torques. • Positive handle stops. • Color coded handles. • Optional pneumatic and electric actuation. • Optional live-loaded PTFE stem seals. • Optional non-adjustable O-ring stem seals. • Optional upstream and downstream drain models. • Optional stainless steel and extended handles.
Applications: • Flow Diversion • Flow Selection • Quick Fill Systems • Process Mixing Systems • Instrument Panels • Remote Shut Off (with Actuation)
