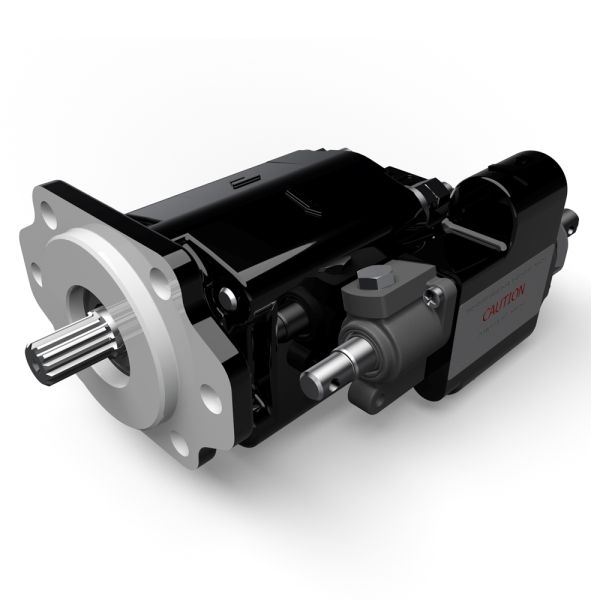

Parker’s G101/G102 series dump pumps provide the most reliable, trouble free performance in the industry for dump truck and trailer applications. Operating pressures up to 172 bar (2,500 psi), speeds up to 2,400 rpm, flows up to 16.9 gpm.
Parker’s G101/G102 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction, making it an ideal selection for the Vocational & Municipal Equipment market. It is available as a standard pump with integrated valve for raising and lower dump beds, with integral relief valve.
Markets: • Vocational & Municipal Equipment
Features/Benefits: • Three-piece cast iron construction for distribution flexibility • Durable high-strength cast iron body for excellent power to weight ratio • Cast Iron construction for durability • Balanced Thrust Plates minimize friction and leakage • Roller bearings for durability
Applications: • Dump Truck • Dump Trailer
Technical Specifications: • Flow is 16.9 gpm (64 lpm) • Displacement is 3.94 cir (64.6 cc/rev) • Operating pressures up to 172 bar (2,500 psi) • Speeds up to 2,400 rpm • Volumetric efficiencies up to 94% • CW, CCW, and Bi-rotational pumps available • SAE shafts, flanges and porting • Integrated relief valve and load hold valve • Integrated raise/neutral/lower valve • Air shift valve available
