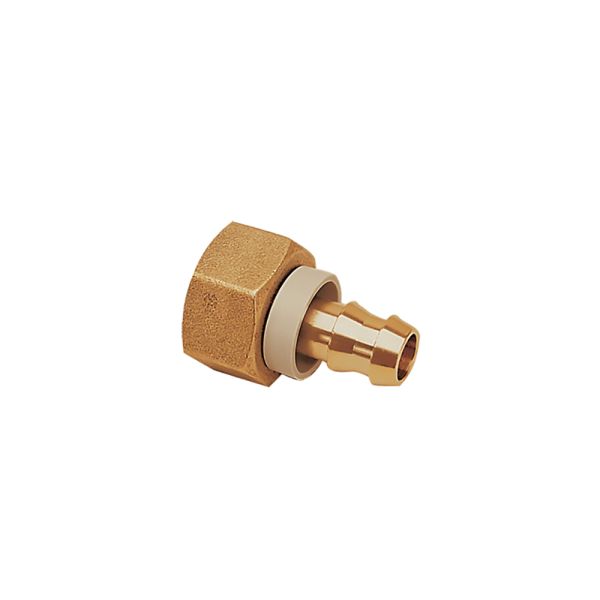

Brass fittings for a quick connection of self-fastening hose to a female port. Available from 6 to 22 mm o.d This range of fittings is designed to meet the requirements of the automotive and robotics industries - CNOMO manufacturing quality.
This range of fittings is designed to meet the requirements of the automotive and robotics industries, provides optimum CNOMO manufacturing quality, simple installation, reliable operation and a long service life.
Features/Benefits:
- Perfect for Self-Fastening NBR Hose
• Quick and simple to install • Compatible with the Parker Legris range of brass compression fittings • Mechanical properties proven for use in industrial robotic installations • Spark-resistant
- Ergonomic and Time-Saving
• Fitting does not require lubrication or clamping, reducing assembly time • Visual stop confirms installation is correct and improves operating safety • Removal by cutting the tube • The fitting can be re-used if necessary
• Pneumatic Machinery Equipment at Medium and High Pressure • Lubrication Systems • Cooling Systems • Welding Robots • Suitable for Vacuum Applications
Technologies:
Brass fittings for a quick connection of self-fastening hose to a female port.
Technical Characteristics:
• Fluids: Coolants, compressed air • Materials: brass, engineering polymer, silicone free • Pressure: 0 to 16 bar • Temperature: 0°C to +100°C (water) -20°C to 70°C (air)
