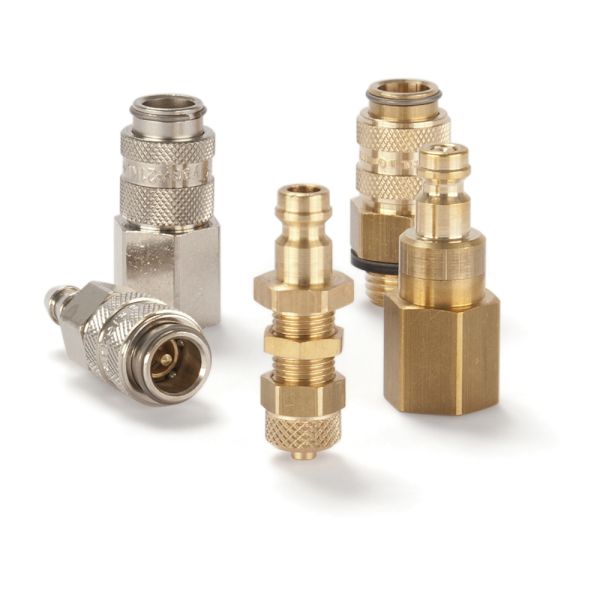

Parker’s Series 21 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. Above average flow performance for liquid and gaseous media.
Markets:
- Industrial
- Electronics and energy management
- Rescue Equipment
- Life Science
- Machinery construction
- Material Handling
- Transportation
- Automotive
- Process
- Food & Beverage
Features/Benefits:
- Mini Industrial Coupling
- Single-hand operation for easy and fast connection
- European profile is the most representative profile worldwide
- Dry-break version available
- Additional safety locking system available to prevent unintentional disconnection
| Maximum Operating Pressure | up to 35 bar, up to 507 psi |
|---|---|
| Division | Low Pressure Connectors Europe Division |
| Compatible Fitting | Series 21 Plug |
| Application | Medical, Industrial Machinery, Air & Gas Compressor, Energy Management, Trucks & Trailers, Pharma, Electronics, Food & Beverages, Textile Machinery, Safety & Rescue |
| Maximum Operating Temperature | 212 °F, 100 °C |
| Minimum Operating Temperature | -4 °F, -20 °C |
| Product Style | Quick-Connect |
| Specifications Met | RoHS, ATEX |
| Product Type | Pneumatic Quick Couplings |
| Weight Parker | 0.0318 kg |
| Body Material | Brass |
| Shape | Straight |
| Materials of Construction | Brass |
| Connection Type | NPT, Female, NPSF ANSI B 1.20.3 |
| Seal Material | NBR |
| Flow Rate | 550 L/min (air) |
| Plating Type | Without Surface Treatment |
| Coupling Half | Coupler |
| Valve Type | Standard Valve |
| Brand | Parker, Rectus |
| For Fluid Type | Air, Compressed Air |
| Interchange Type | European Profile |
| Hex Size | n/a |
| Industry | Transportation, General Industrial, Healthcare & Life Sciences, Electronics |
| Product Series | Series 21 |
| Technology | Fluid & Gas Handling, Pneumatics |
| Operation Type | Sleeve |
| Function | Single Shut-Off |
| Connection Size | 1/8, 1/8 inch |
| Sleeve Material | Brass |
| Region of Origin | Germany |
| Quantity per Box | 10 |
| Diameter | 5 mm (nominal) |
| Version | Single Shut-Off |
