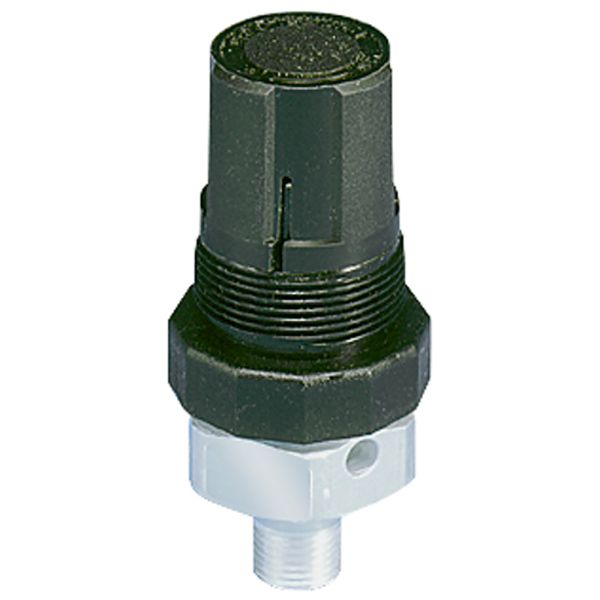

The 130 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. This compact, sensitive diaphragm-type relief valve can be used where gradual proportional relief is required. It contains a top adjustment knob that adjusts relief range, same as a miniature regulator. There are four spring ranges (0-15, 0-25, 0-50 and 0-100 PSIG) available.
Markets:
• Factory Automation
• Heavy Industries
Features/Benefits:
• Compact design saves space
• Top adjustment knob
• Durable brass body
• Protects pneumatic circuit or system
Applications:
• Industrial environment
• General pneumatic assembly
| Division | Pneumatic Division |
|---|---|
| Body Material | Aluminum |
| Maximum Inlet Pressure Rating | 300 psig, 20.7 barg |
| Adjustment Mechanism | Polypropylene Push-Pull Locking Knob |
| Operating Temperature | 40 to 120 °F, 4 to 49 °C |
| Port Size | 1/4 inch |
| Port Type | NPT (Male)│BSPP¦(Male) |
| Available Accessories | W/O panel mount nut |
| Pressure Relief Setting (psig) | 0-100 |
| Adjustment Screw Material | Steel, Zinc-plated (adjusting screw and spring) |
| Pressure Relief Setting | 0 to 100 psig, 0 to 6.9 barg |
