| Maximum Operating Pressure | 20.7 MPa, 207 bar, 3000 psi (Dependent on hose) |
|---|---|
| Division | Parflex Division |
| Application | Chemical Transfer, Hydraulics, Tools & Equipment, General Industrial, Medical, Pneumatics, Ultra High Purity, Fluid Control, Instrumentation, Semiconductor |

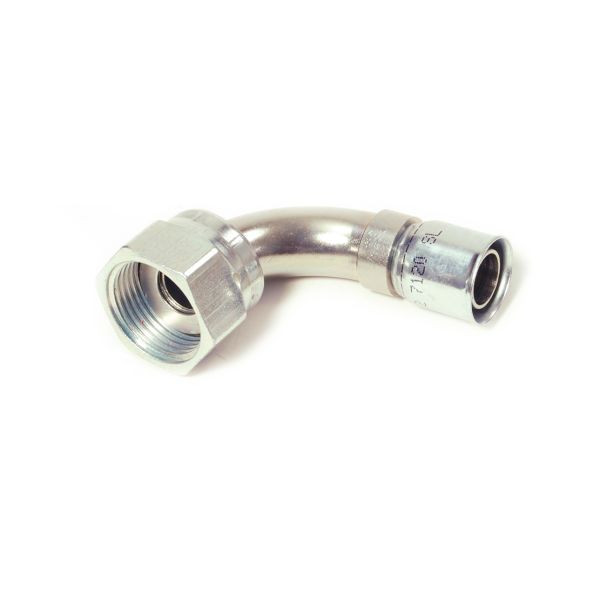

| Product Style | Female Seal-Lok - Swivel - 90° Elbow - Short Drop |
| Specifications Met | n/a |
| Product Type | Hose Fittings |
| Body Material | Steel |
| Shape | Elbow 90° Short Drop |
| Tube Outside Diameter | n/a |
| Dimensional Weight | 0.0567 lb |
| Length (inch) | 2.02" |
| Connection 2 Size | 13/16"-16 inch Thread, 13/16"-16 |
| Connection 1 Size | -8 (Size), 10.3 mm, 13/32 inch Hose I.D. |
| Brand | Parker |
| Connection 2 Type | Female, Swivel, Seal-Lok® |
| For Fluid Type | Steam, Gases, Hydraulic Fluids, Chemicals, Water, Pharmaceutical Fluids, Air (Pneumatic Media), Oil |
| Hose I.D. (inch) | 13/32" |
| Hex Size | n/a |
| Industry | Transportation, General Industrial, Food & Beverage, Semiconductor, Healthcare & Life Sciences |
| Connection 1 Type | Hose |
| Product Series | 91N |
| Configuration | Hose to Port |
| Technology | Fluid & Gas Handling |
| Connection Length | 1-3/8 inch Cut-off allowance (see drawing legend B), 35 mm |
| Fitting Length | 51 mm, 2.02 inch (see drawing legend A) |
| Coating | Chromium 6 Free-plated |
| Hex Size 1 | 15/16 inch (see drawing legend H) |
