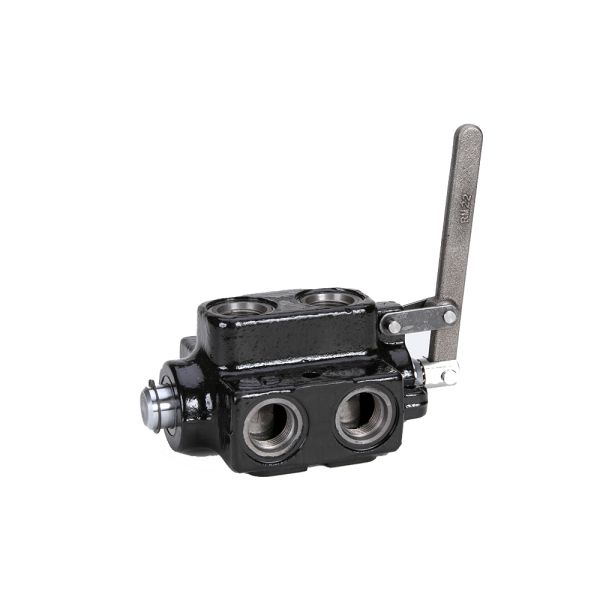

Parker’s DS Double Selector valve diverts the A & B input ports into two separate circuits. In one position, the A & B ports are directed to C & D, and in the other position, A & B ports are directed to E & F.
This selectable circuitry permits operation of two, double-acting cylinders with: one four-way control valve or, four single-acting cylinders with two three-way control valves.
Markets: • Aerial • Agricultural Machinery • Construction Equipment • Defense • Forestry Equipment • Marine • Material Handling Equipment • Mining • Misc Transportation • Oil & Gas • Other Mobile • Other Natural Resources • Rail • Refuse • Turf Equipment • Vocational and Municipal Equipment
Features/Benefits: • Chrome plated spool • High-tensile cast iron body • Standard porting options are 3/4” NPT as well as SAE-12 • The valve should be shifted prior to applying system pressure • Rated at 3000 PSI with SAE ports and the maximum recommend input flow is 25 GPM • The valve spool is of the open crossover type. This means that at mid stroke, ports A, D, and E are momentarily connected
Applications: • Suitable for various mobile applications
