Pioneer Clamps for Agricultural Quick Couplings are designed to be used with push-pull type sleeves to allow the couplings to disconnect in a breakaway situation.
Pioneer Breakaway Clamps are designed to be used with 1/2" body size agricultural quick couplings that have 1 1/2" diameter push-pull type sleeves. When the coupler female bodies are securely and properly installed in the clamp, the push-pull sleeve will allow the coupler and male tip to disconnect in a breakaway situation. This can help to avoid costly damage such as broken hose and mass fluid spillage. Single and double clamp styles are available.

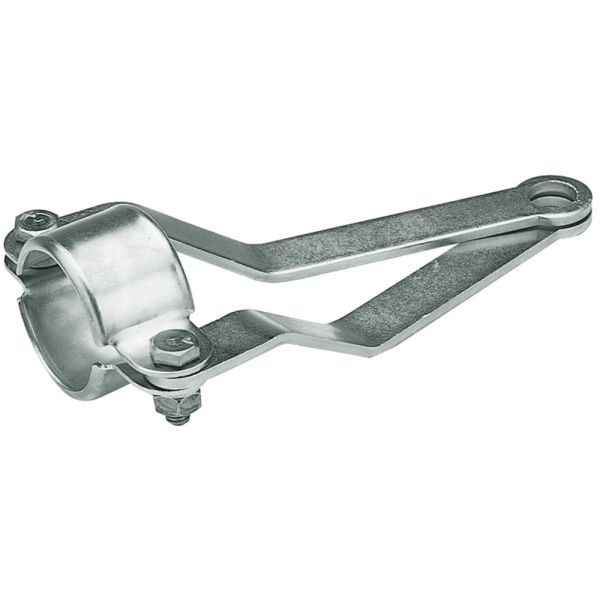

Single Breakaway Clamp 5001-4 is compatible with these series Pioneer couplers: • 4200, 8200 Double Breakaway Clamp 5006-4 is compatible with these series Pioneer couplers: • 4200, 8200, 8450 Double Breakaway Clamp 9006-4 is compatible with 9250 Pioneer lever couplers
Markets: • Agriculture • Mobile Farm Equipment
Features/Benefits: • When properly installed in the clamp, the coupling will disconnect and valves will automatically close in the case of a breakaway • Pioneer Breakaway Clamps are compatible with 1/2" body size Pioneer agricultural couplers that have 1 1/2" diameter push-pull / double acting sleeves
Applications: • Tractors and mobile equipment attachments • Agricultural attachments requiring breakaway
