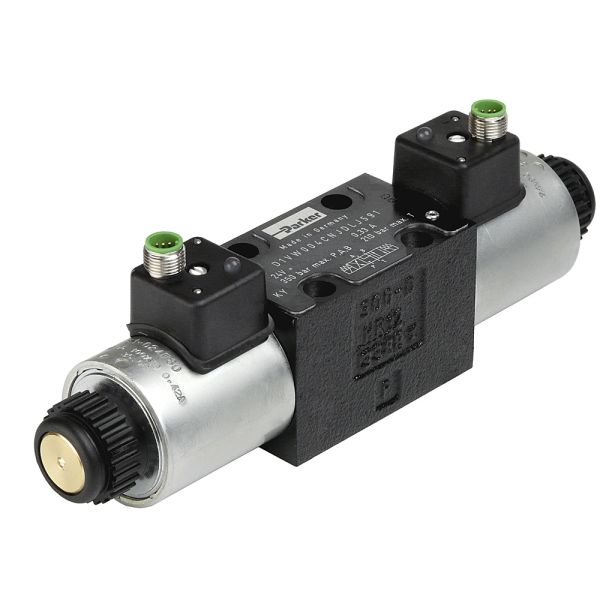

The directional control valve series D1VW 8 Watt is based on the standard D1VW design. The low watt, low current solenoid (< 0.5 A) of this on/off valve allows a direct connection to a PLC.
The directional control valve series D1VW 8 Watt in NG06 (CETOP 03 / NFPA D03) enables direct connections to a programmable logic controller (PLC) or a bus knot and thus saves the use of a relay. This on/off valve provides high functional limits up to 60 l/min in combination with a very low, energy-saving pressure drop due to optimized flow passages. The maximum pressure is 350 bar.
Markets: • Industrial
Features/Benefits: • Compact, proven design that represents our long-term experience in hydraulics • Low pressure drop – resulting in low energy losses in operation • Wide range of spools - fits all hydraulic systems • Shortest lead time - no warehousing necessary
Applications: • Machine tools
D1VW 8 Watt valves are offered with standard solenoid connection (as per EN175301-803) and M12 x 1 connection. The version with M12 x 1 connection and LEDs is conform to the DESINA standard (DistributEd and Standardised INstAllation technology) for machine tools and manufacturing systems.
