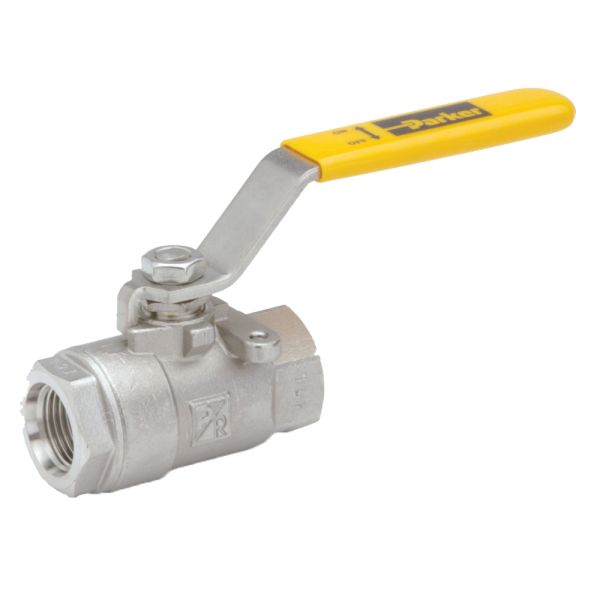

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.
Availability: In stock
SKU
V502SS-4
Lead Time
5
Parker's industrial stainless steel ball valve line is intended for general purpose use. Stainless steel ball valves are intended for use in the fully open or closed positions. Depending on the application conditions, throttling of the valve may result in premature seal failure and/or inability to turn the valve handle. Parker's stainless steel ball valves meet the material requirements of of NACE MR-01-75.
Parker's stainless steel ball valves are available in the following styles.
• Male Pipe x Female Pipe
• Female Pipe x Female Pipe
• Panel Mount

Options for the stainless steel ball valve include:
• Oval Handle
• Short Handle
• Padlocking Handle
• Welded Retainer Nut
• Actuator Kit

Markets:
• Petrochemical
• Refineries
• Steel
• Agriculture
• Food Processing
• Industrial

Features/Benefits:
• CF-8M Stainless Steel Body
• Stainless Steel Ball
• PTFE Seats/Seals
• Meets Material Requirements NACE MR-01-75

Applications:
• Fuel Lines
• Chemical Lines
• Wash Down
• Plant Design Plumbing Requiring Total Shutoff Capability
More Information
Maximum Operating Pressure 2000 psi, 138 bar
Division Fluid System Connectors Division
Maximum Operating Temperature 204 °C, 400 °F
Minimum Operating Temperature -17 °C, 0 °F
Vacuum Pressure Rating 28 inch-Hg
Specifications Met NACE MR-01-75
Product Type Ball Valve
Body Material CF-8M Stainless Steel
Connection 2 Thread Size (inch) 1/4
Shape Panel Mount
Style Female Pipe Ends
Connection 1 Thread Size (inch) 1/4
Connection Type NPT
Seal Material PTFE
Configuration Female NPT
Mounting Type Panel
Maximum Flow Rate 4 Cv
Actuation Type Manual
Operation Type n/a
Function 2-Way
Ball Material PTFE
Handle Stainless Steel Lever
Connection Size 1/4 inch
Seat Material PTFE, Stainless Steel
Connection 1 Thread Style Female Pipe
Connection 2 Thread Style Female Pipe
Locking Mechanism Non-Locking
Handle Type Lever
Orifice Size .38
