STD HEATER HOSE 5/8

STD HEATER HOSE 5/8"X100' BLUE

STD HEATER HOSE 3/4

STD HEATER HOSE 3/4"X 50' BLUE

STD HEATER HOSE 5/8" REEL BLUE

Silicone Standard Wall High Temperature Heater Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment inapplications to 350°F and 83 psi, Series 6722
Availability: In stock
SKU
6722-0625250
Lead Time
26

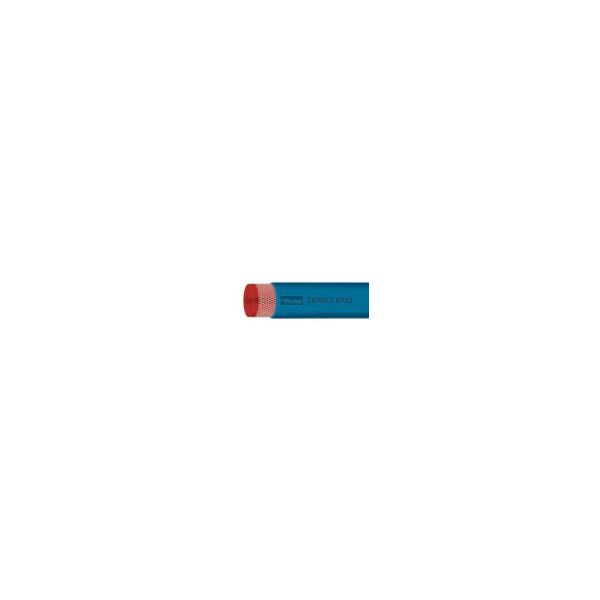

Parker's Series 6722 Silicone Standard Wall High Temperature Heater Hose provides excellent service across a wide variety of coolants and multiple engine heater and radiator applications. The silicone construction resists chemicals, aging, cold leaks, cracking, delamination, heat, ozone and peeling to maximize performance. The hose is flexible for easy routing and installation, resists the elevated temperatures common to engine compartments and is available in a variety of popular and convenient standard lengths.

Markets:
• General Industrial
• Transportation

Features/Benefits:
• Tube: Red silicone for superior heat resistance to 350°F.
• Reinforcement: Multiple textile plies for strength and kink resistance.
• Cover: Blue silicone for superior temperature resistance and easy identification.

Applications:
- media
• Coolant
• Hot water
- usage
• Coolant transfer in heater and coolant circuits
• DEF systems
• Agricultural equipment
• Buses
• Construction equipment
• Off-road equipment
• Trucks

Industry Standards:
• SAE J20R3 Class A

Safety/Technical:
• Design Factor: 3:1
• Nonconductive
More Information
Media Water, Coolants
Maximum Operating Pressure 250 psi, 17 bar
Division Hose Products Division
Application Engine, Silicone Coolant
Hose Inner Tube Material Silicone, Brick Red
Inside Diameter 5/8 inch, 15.9 mm, 0.625 inch
Maximum Operating Temperature 350 °F, 176 °C, 347 °F, 175 °C
Minimum Operating Temperature -53 °C, -65 °F, -54 °C
Minimum Bend Radius 2 inch, 45 mm, 44.5 mm, 1.8 inch
Outside Diameter 0.900 inch, 0.940 inch, 23.9 mm
Specifications Met SAE J2387, SAE J20R3
Cover Material Silicone
Hose Reinforcement Material Multiple Plies of High Temperature Textile
Weight Parker 0.24 lb/ft, 0.36 kg/m
Hose I.D. (inch) 5/8"
Cover Color Blue
Minimum Burst Pressure 250 psi, 17.2 bar, 17 bar
Package Type Reel
Cover Structure Glossy
Standard Pack Qty (ft) 250
Minimum Burst Pressure (psi) 250
