| Maximum Operating Pressure | 20.7 MPa, 207 bar, 3000 psi (Dependent on hose) |
|---|---|
| Division | Parflex Division |
| Application | Chemical Transfer, Hydraulics, Tools & Equipment, General Industrial, Medical, Pneumatics, Ultra High Purity, Fluid Control, Instrumentation, Semiconductor |

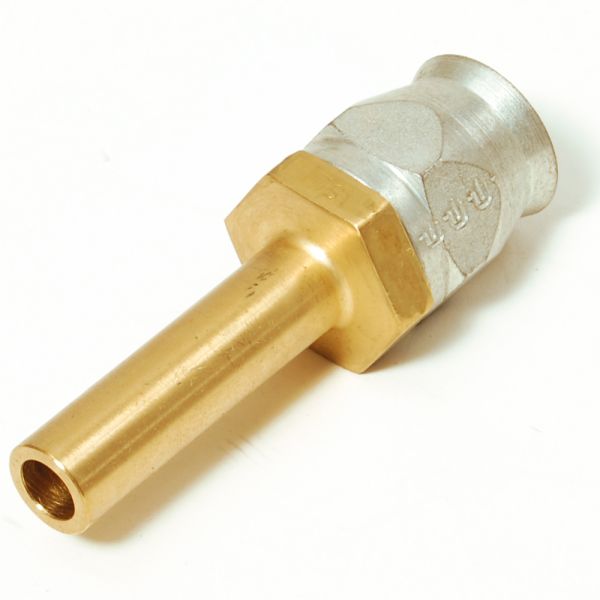

| Product Style | Male Standpipe - Rigid - Straight (Inch Size Tube O.D.) |
| Specifications Met | n/a |
| Product Type | Hose Fittings |
| Body Material | Steel (Socket), Brass (Nipple and Ferrule) |
| Shape | Straight |
| Tube Outside Diameter | n/a |
| Dimensional Weight | 0.0529 lb |
| Length (inch) | 3.28" |
| Connection 2 Size | n/a |
| Connection 1 Size | -10 (Size), 1/2 inch Hose I.D., 12.7 mm |
| Brand | Parker |
| Connection 2 Type | Male, Straight Tube |
| For Fluid Type | Steam, Gases, Hydraulic Fluids, Chemicals, Water, Pharmaceutical Fluids, Oil, Pneumatic Media |
| Hose I.D. (inch) | 0.5" |
| Hex Size | 1 inch (see drawing legend H) |
| Industry | Transportation, Food & Beverage, Semiconductor, Healthcare & Life Sciences, Industrial |
| Connection 1 Type | Hose |
| Product Series | 90 |
| Configuration | Hose to Port |
| Technology | Fluid & Gas Handling |
| Connection Length | 45 mm, 2-5/8 inch Cut-off allowance (see drawing legend B) |
| Fitting Length | 3.28 inch (see drawing legend A), 83 mm |
| Coating | Chromium 6 Free-plated |
| Hex Size 1 | 1 inch (see drawing legend J) |
