P8S-TMC proximity mounting kit for accurate and reliable location of P8S reed or electronic sensor position detecting switches on round bodied pneumatic cylinders. Suitable for P1A, P1S and R Series cylinders bores Ø10mm to Ø125mm.

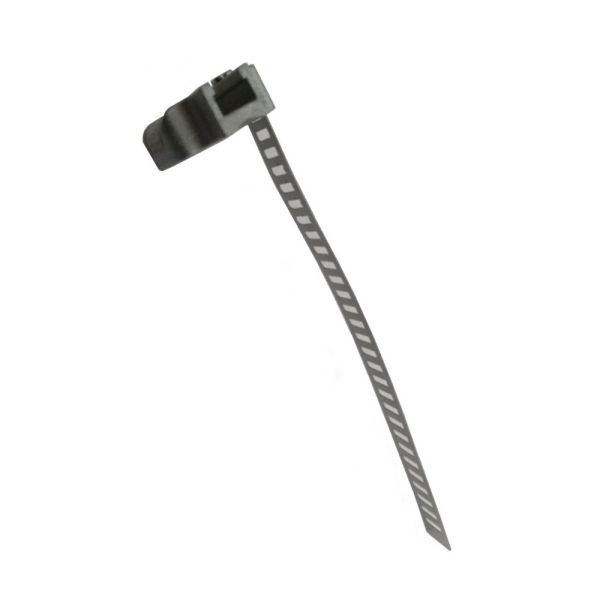

The P8S-TMC01 adjustable sensor bracket is available to suit round cylinders with bore sizes Ø10mm to Ø25mm including the P1A, P1S and R Series. The diecast aluminium body with a simple fixing screw mechanism adjusts and locks the clamping ring band to securely locate the bracket providing T-slot mounting for P8S reed or electronic sensors. Each mounting bracket can fit one P8S sensor.
Performance Characteristics: Body : Zinc plated diecast aluminium Screw : Stainless steel Clamping Ring : Nickel plated steel Weight (Kg) : 0.07 For Product Series : P1A | P1S | RDV For Bore Sizes (mm) : 10 | 12 | 16 | 20 | 25 For Sensor Series : P8S
