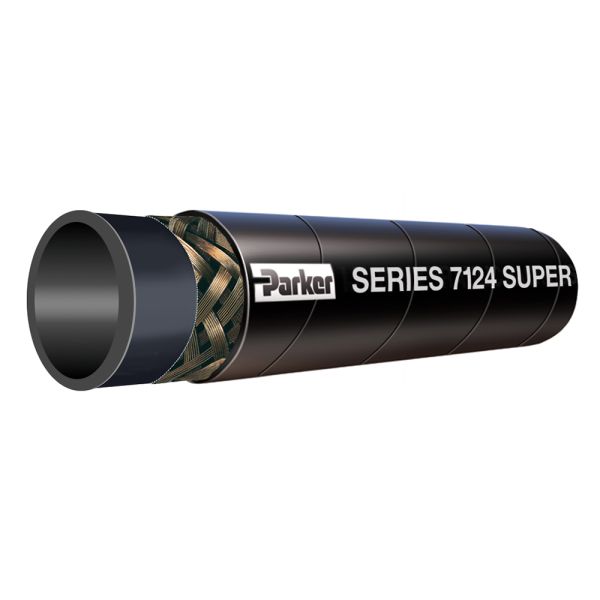

Parker's Series 7124 Semi-Hardwall Gasoline Dispenser Hose provides excellent service across a wide variety of industrial and commercial curb pump applications. The robust construction reduces meter creep for accurate consumption data and provides excellent crush resistance and kink resistance for maximum performance. The non-marking hose cover does not deface the finish of vehicles and resists abrasion, oil and weathering. Series 7124 is qualified with permanent crimp couplings for a safe and secure connection and provides robust service in consumer-oriented applications.
Markets:
• General Industrial
• Oil & Gas
Features/Benefits:
• Tube: Black nitrile for fuel compatibility to 180°F.
• Reinforcement: One wire braid for crush resistance, strength and durability.
• Cover: Black CPE for abrasion, oil and weathering resistance.
Applications:
- media
• Refined fuels
• Diesel
• Ethanol
• Gasoline
• Oil
- usage
• Curb pumps
• Gasoline dispensers
• In-plant/tank transfer
• Car rental facilities
• Convenience stores
• Garages
• Service stations
Industry Standards:
• UL330/ULC
Safety/Technical:
• Design Factor: 5:1
• Not UL listed for E85 service
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use Parker gasoline dispenser hose for aircraft fueling applications. Use only API/NFPA qualified hose for aircraft fueling applications.
Lubricants (Oils), Fuels (Diesel) - Check fuel type with our catalogue chart., Fuels (Gasoline) - Check fuel type with our catalogue chart., Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart., Fuels (Biodiesel to B20 in dedicated service)
Maximum Operating Pressure
50 psi, 3 bar
Division
Hose Products Division
Application
Petroleum Transfer
Hose Inner Tube Material
Black, Nitrile
Inside Diameter
1 inch, 25.4 mm
Maximum Operating Temperature
180 °F, 82 °C
Minimum Operating Temperature
-40 °F, -40 °C
Minimum Bend Radius
5 inch, 127 mm
Outside Diameter
34 mm, 1.340 inch
Specifications Met
NFPA 30A, UL 30, N4 (factory assemblies), UL 330/ULC
