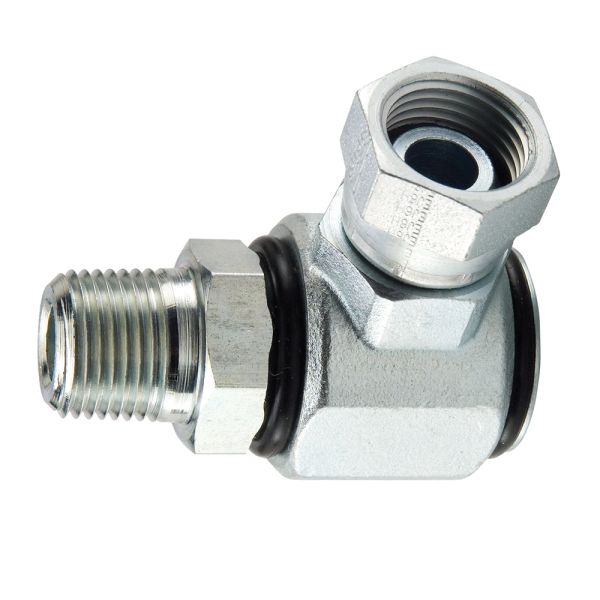

S Series Swivels (hydraulic or pneumatic) up to 3000 psi, are designed to eliminate hose twist and torque that may contribute to premature hose failure. These 90° Swivels have a pressure balanced design in a compact, forged body. As a result of the pressure balanced design, the S Series Swivel does not experience a significant increase in torque as pressure rises. A wide variety of port options are available for both the housing and shaft ends. Maximum rotation speed is 10 rpm.
Technical Characteristics: • Sizes: 1/4” – 3/4” • Material: Carbon Steel • Shaft Port Ends: Male NPTF, Female NPTF, Male JIC 37 degree, Male SAE O-Ring Straight Thread • Housing Port Ends: Male NPTF, Feamle NPTF, Male JIC 37 degree, Male SAE O-Ring Straight Thread, Female NPSM Pipe Swivel, Female SAE Straight Thread • Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon • Optional Nickel plating
Markets: • Industrial • Construction • Agriculture
Features/Benefits: • Pressure balanced design allows swivel movement to be minimally affected by internal fluid pressure • Forged body is compact to fit into confined spaces • Case hardened for extended service life • Eliminates hose twist and torque caused by the movement of working equipment
Applications: • Drop-down air lines • Aerial lift equipment • Hose reels • Articulating arm equipment • Refuse trucks
