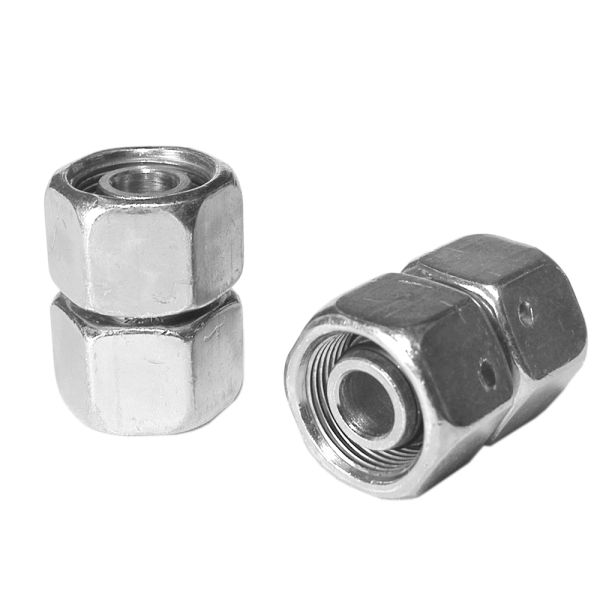

The main function of Ermeto DIN swivel-to-swivel high pressure hydraulic tube fittings is the connection of 2 tubes or hoses with the same or different diameters. This broad range of Ermeto DIN swivel-to-swivel high pressure hydraulic tube fittings, types GZ and GZR is available in steel and in a stainless steel version.
Markets:
• Automotive
• Defence
• Energy
• Environment
• Industrial
• Infrastructure
• Machine Tools
• Materials Handling
• Mobile
• Oil and Gas
• Power Generation
• Process
• Transportation
• Water
Applications: Suitable for general hydraulic applications.
Features/ benefits:
• • Steel and Stainless steel fittings have a high corrosion resistance to aggressive media and environmental influences. This attribute extends the life cycle of the fittings.
• Stainless steel surface: Ermeto DIN swivel-to-swivel high pressure hydraulic tube fittings , stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications.
• High pressure: Ermeto DIN swivel-to-swivel high pressure hydraulic tube fittings have pressure ratings of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications.
| Maximum Operating Pressure | 800 bar |
|---|---|
| Division | High Pressure Connectors Europe Division |
| Application | Chemical Transfer, Hydraulics, Mobile Equipment, Packaging, Oilfield, Fuel Transfer |
| Product Style | Adjustable Position |
| Specifications Met | ISO 8434, DIN |
| Product Type | Hydraulic DIN Fittings |
| Body Material | Steel |
| Shape | Straight |
| Connection 2 Size | 8 mm Tube O.D., 8 mm (O.D.) |
| Connection 1 Size | 8 mm Tube O.D., 8 mm (O.D.) |
| Seal Material | NBR |
| Brand | Ermeto |
| Maximum Ambient Temperature | 300 °C, 572 °F |
| Connection 2 Type | Male, 24° Cone (with O-Ring), Male 24° Cone (with O-Ring) |
| Minimum Ambient Temperature | -40 °F, -40 °C |
| For Fluid Type | Steam, Gases, Hydraulic Fluids, Chemicals, Fuels |
| Industry | Marine, Construction, Material Handling, Industrial Manufacturing Equipment, Agriculture, Automotive, Transportation |
| Connection 1 Type | Male, 24° Cone (with O-Ring), Male 24° Cone (with O-Ring) |
| Minimum Fluid Temperature | -40 °F, -40 °C |
| Accessories Included | Pre-assembled with EO-2 Functional Nut |
| Maximum Fluid Temperature | 572 °F, 300 °C |
| Product Series | EO Heavy |
| Configuration | Swivel to Swivel |
| Technology | Fluid & Gas Handling |
| Seal Type | Sealing Edge |
