Parker Legris has designed different accessories to improve safety and circuit identification. Those accessories are compatible with the LF 3000® Push-In Fittings , LIQUIfit® ranges.
Features/Benefits:
- Safety
• Protection of operators and equipment
• Prevents accidental disconnection
• Disconnection only possible with tooling
• Resistance to grease and cleaning agents- Ergonomic
• Colour-coding for fluid circuit identification (6 colours)
• Setting and fixing of your circuits thanks to clips and release button covers
• Easy disconnection with tool where access is difficult
• Adapted to meet all installation configurations
Markets:
• Factory Automation
• Vehicule Assembly Facilities
• Food and Beverage
• Semiconductor
• Wearing Apparel
• Packaging Machinery
Applications:
• Pneumatic Machinery Equipment
• Low Pressure Compressed Air Conveying
• Suitable for Vaccum Applications
Technologies:
• Safety Accessories
• Safety Tools
• Circuit Identification
• Push-In Fittings
• Push-to-Connect Fittings
• Pneumatic Fittings
• Instant Fittings
• Quick Fittings
• Connectors
Technical Characteristics:
• Compatible ranges: LF 3000®, LIQUIfit®• Materials: Technical polymer, nickel-plated brass
• Pressure: Vacuum to 20 bar• Temperature: -20°C to +95°C
• Ø Metric: 4mm to 14 mm
Product Types:
• Tamper-Proof Safety clips
• Clip Strip for Tubes and Fittings
• Disconnection Tool
• Coloured Release Button Covers
• Reducer

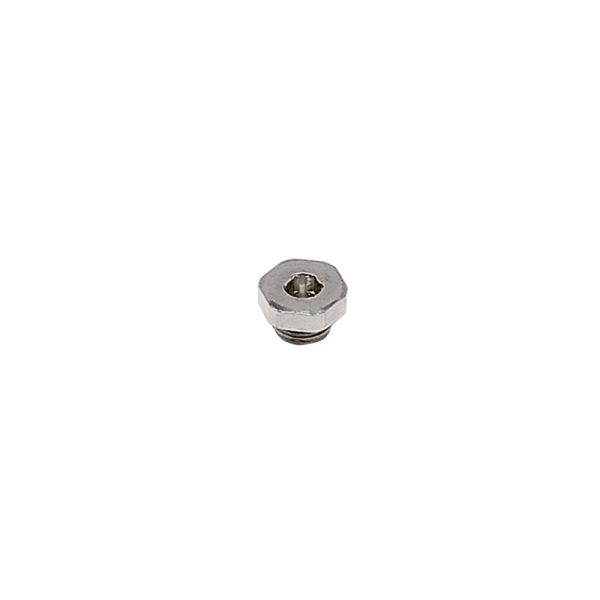

• Internal Hex plug
| Media | LF3000, LIQUIfit |
|---|---|
| Maximum Operating Pressure | 20 barg |
| Division | Low Pressure Connectors Europe Division |
| Application | Packaging, Pneumatics, Semiconductor, Automotive, Vacuum, Robotics, Textile, Automotive Process, Food & Beverage, Semi-Conductors, Water Treatment, Beverage Dispensers |
| Maximum Operating Temperature | 80 °C, up to 80 °C |
| Minimum Operating Temperature | -10 °C, -20 °C |
| Vacuum Pressure Rating | 755 mm-Hg, na |
| Product Style | Plugs, Internal Hexagonal Plug Male Stud Thread |
| Product Type | Adaptors, Plugs and Manifolds, Accessories for Push-In Fittings |
| Weight Parker | 002 kg, 0.002 kg |
| Body Material | Brass, Nickel-plated, Nickel Plated Brass |
| Shape | Straight |
| O-Ring Material | NBR |
| Connection 2 Size | n/a |
| Connection 1 Size | M5x0.8 mm Thread |
| Seal Material | NBR |
| Brand | Parker, Legris |
| Connection 2 Type | n/a |
| For Fluid Type | Air (Compressed Air) |
| Hex Size | 8 |
| Industry | Industrial Manufacturing Equipment, Transportation, Semiconductor, Off-road Machinery, Industrial Processing, Chemicals Processing, Power Generation, Renewable Energy, Electronics |
| Connection 1 Type | Male, Metric |
| Product Series | LF 3000®, LF 3600, LF 3800 |
| Configuration | N/A |
| Technology | Fluid & Gas Handling |
| Color | n/a |
| Connection 1 Thread Size | M5x0.8 |
| Hex Type | n/a |
| Quantity per Box | 10 |
| Operating Pressure | 20 to 60 bar |
