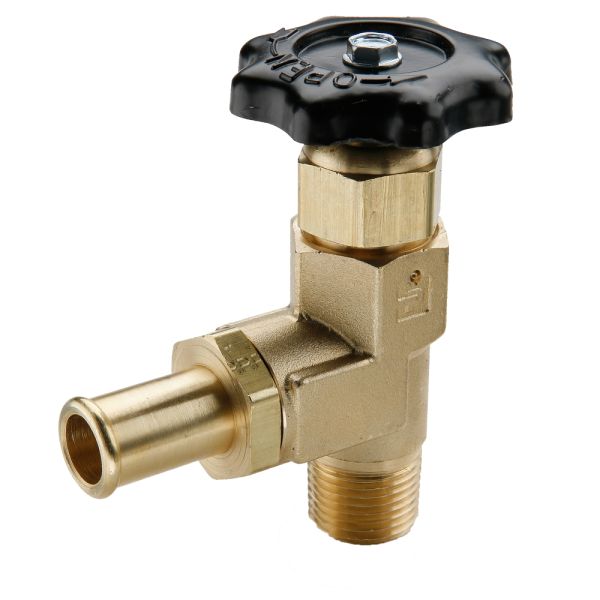

Parker's truck valves are a robust, all brass construction with metal-to-metal seats for high heat/fluid compatibility. Fine thread screw down to afford flow control ability and a positive seal. Truck valve connections include flare, hose, tube and pipe. Round and pin handle are available.
Markets:
• Heavy duty truck
• Trailer
• Mobile
Features/Benefits:
• Can be “throttled”
• Lower pressure ratings
• More economical
• Unique configurations
Applications:
• Water lines
• Oil lines
• Coolant lines
Custom configurations and sizes are available upon request. Contact us for additional information.
| Maximum Operating Pressure | 150 psi, 10 bar |
|---|---|
| Division | Fluid System Connectors Division |
| Maximum Operating Temperature | 250 °F, 121 °C |
| Minimum Operating Temperature | -30 °F, -34 °C |
| Body Material | Brass |
| Connection 1 Style | Hose Barb |
| Connection 2 Thread Size (inch) | 1/2 |
| Shape | Right Angle |
| Connection 1 Tube O.D. (inch) | na |
| Connection 2 Style | Male Pipe |
| Style | Hose to Pipe |
| Dimensional Weight | 0.5518884892086331 lb |
| Connection 1 Thread Size (inch) | na |
| Handle | Round |
| Connection 1 Hose I.D. (inch) | 3/4 |
| Stem Material | Brass |
