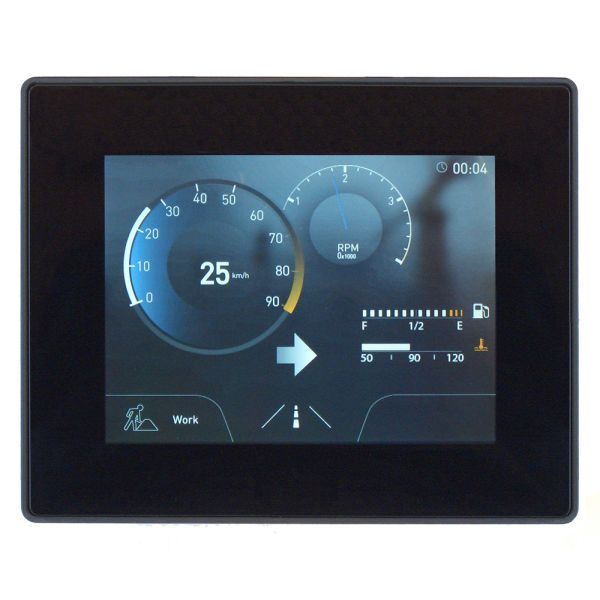

The IQAN-MD4-5-T1E2-M19 is a master display unit compliant with the IQANdesign platform system. The unit is fully programmable for use in any machine application as a master controller, a graphical user interface and as a CAN gateway.
The IQAN-MD4 lets you use the full benefits from IQANdesign tools and simplifies the HMI design.The simplified design process, with auto-generated diagnostic measurements and adjustments, saves valuable time. IQAN gives you a high level tool chain for machine control and HMI development.
IQAN-MD4-5-T1E2-M19 comes with a 14 cm (5.7") touch screen display with IP camera support, and is manufactured to be weatherproof for outdoor use.
M19 version has a limited performance on brightness, viewing angles, contrast and temperature range compared to the standard IQAN-MD4-5-T1E2 version, offering a very cost-effective option for the customers with lower level display requirements. See instruction book for details.
| Division | Electronic Motion and Controls Division |
|---|---|
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | -20 °C |
| Specifications Met | 2004/108/EC |
| Input Voltage | 9 to 32 VDC |
| Ingress Protection Rating | 65 |
| Model Number | MD4-5-T1E2-M19 |
| Electrical Connection | Deutsch DTM |
| Communication Interface | 4x CAN, 2x Ethernet |
| Number of Inputs | 10 |
| Number of Outputs | 4 |
