CHECK VALVE

5/16 CHECK

VC CHECK VALVE

Be the first to review this product

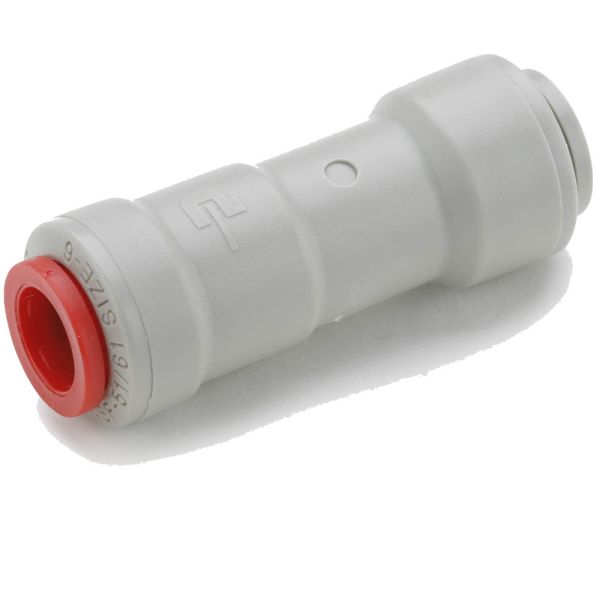

Parker's Push-to-Connect check valves are manufactured from either acetal or kynar material and allow liquid to flow in one direction.

Availability: In stock

SKU

A4VC4-MG

Available Qty

Lead Time

Details

Parker's Push-to-Connect check valves ensure protection against reversal of flow. Valves are designed for connection with either thermoplastic or soft metal tubing and are intended for use with liquids only. The valves have an arrow molded into the body to indicate the direction of flow.

Markets:
• Food
• Potable Water
• Chemical
• Filtration

Features/Benefits:
• FDA Compliant NSF/ANSI 51
• Gray Acetal NSF/ANSI 61
• Compact
• Lightweight
• Symbol showing the operating direction of flow

Applications:
• Water
• Soft Drinks
• Beer/Wine
• Dyes

More Information

More Information
Maximum Operating Pressure	10 bar, 145 psi
Division	Fluid System Connectors Division
Application	Packaging, Pneumatics, Semiconductor, Robotics, Textile
Maximum Operating Temperature	150 °F, 65 °C
Minimum Operating Temperature	-34 °F, 1 °C
Body Material	Acetal
Shape	In-Line
Connection 2 Size	n/a, 1/4 inch Tube O.D.
Connection Type	n/a
Connection 1 Tube Outside Diameter	1/4" (O.D.)
Connection 1 Size	n/a, 1/4 inch Tube O.D.
Connection 2 Tube Outside Diameter	1/4" (O.D.)
Seal Material	EPDM
Connection 2 Type	Push-to-Connect
For Fluid Type	Water, Food & Beverage (Beer, Wine)
Connection 1 Type	Push-to-Connect
Configuration	Tube to Tube
Gripping Ring Material	Stainless Steel
Collet Material	Red
Cracking Pressure	1/3 psi, 1/3
Valve Configuration	One Way
